Home / Power Supplies / Zalman ZM600-LX power supply unit 600 W ATX Black
Zalman · MPN ZM600-LX · Zalman ZM600-LX power supply unit 600 W ATX Black

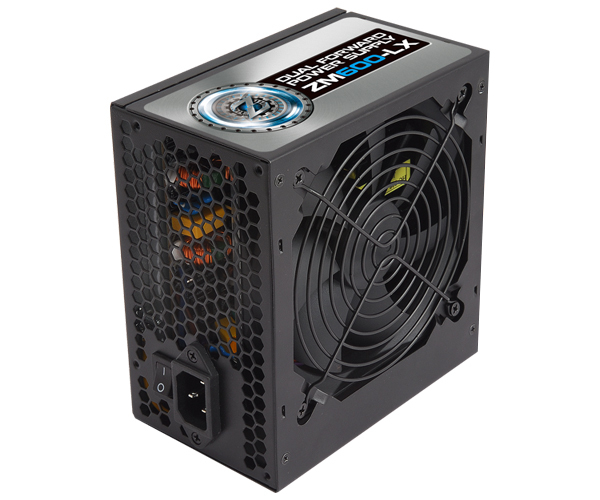

Zalman ZM600-LX power supply unit 600 W ATX Black
- Total Power
- 600 W
- Purpose
- PC
- Certification
- CB, CE, KC, CCC
- Compliance Certificates
- RoHS
- Cooling Type
- Active
- Fan Diameter
- 12 cm
Specifications
Certificates
| Certification | CB, CE, KC, CCC |
|---|---|
| Compliance Certificates | RoHS |
Design
| Cooling Type | Active |
|---|---|
| Fan Diameter | 12 cm |
| Fan Location | Top |
| Illumination | No |
| Number Of Fans | 1 fan(s) |
| On/Off Switch | Yes |
| Product Colour | Black |
Operational conditions
| Operating Relative Humidity (H-H) | 5 - 95% |
|---|---|
| Operating Temperature (T-T) | 0 - 40 °C |
| Storage Relative Humidity (H-H) | 5 - 95% |
| Storage Temperature (T-T) | -20 - 70 °C |
Other features
| Power Over Ethernet (Poe) | No |
|---|
Performance
| Atx Version | 2.31 |
|---|---|
| Power Supply Unit (Psu) Form Factor | ATX |
| Purpose | PC |
Ports & interfaces
| Cabling Type | Non-Modular |
|---|---|
| Number Of Sata Power Connectors | 2 |
| Pci Express Connector | Yes |
Power
| Ac Input Frequency | 50 - 60 Hz |
|---|---|
| Ac Input Voltage | 200 - 240 V |
| Combined Power (+12v) | 540 W |
| Combined Power (-12v) | 3.6 W |
| Combined Power (+3.3v) | 130 W |
| Combined Power (+5v) | 130 W |
| Combined Power (+5vsb) | 10 W |
| Efficiency | 84% |
| Input Current | 6 A |
| Maximum Input Current (@110v) | +12V,+3.3V,+5Vsb |
| Max Output Current (+12v) | 45 A |
| Max Output Current (-12v) | 0.3 A |
| Max Output Current (+3.3v) | 24 A |
| Max Output Current (+5v) | 16 A |
| Max Output Current (+5vsb) | 2 A |
| Power Factor | 0.99 |
| Power Factor Correction (Pfc) Type | Active |
| Power Protection Features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Total Power | 600 W |
Weight & dimensions
| Depth | 140 mm |
|---|---|
| Height | 86 mm |
| Weight | 1.95 kg |
| Width | 150 mm |
