Home / Power Supplies / Zalman ZM1200-EBT power supply unit 1200 W 20+4 pin ATX ATX Black
Zalman · MPN ZM1200-EBT · Zalman ZM1200-EBT power supply unit 1200 W 20+4 pin ATX ATX Black

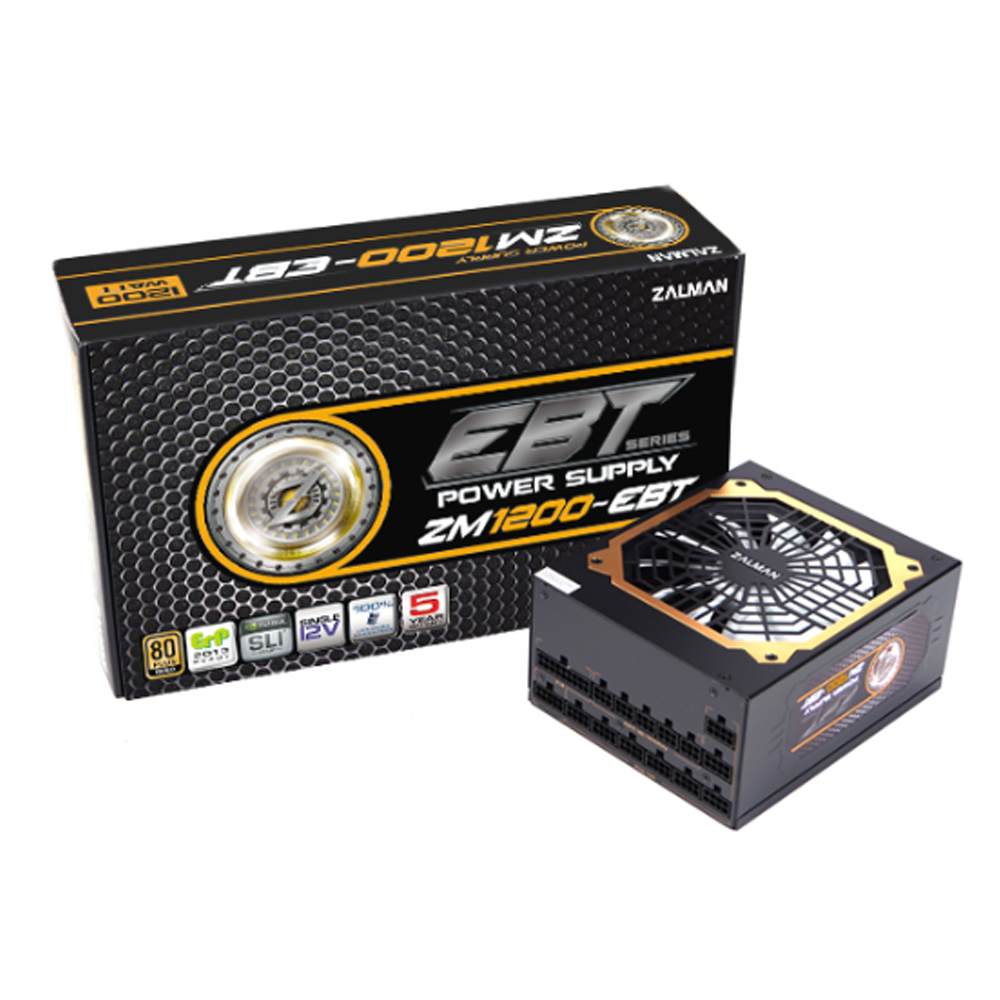

Zalman ZM1200-EBT power supply unit 1200 W 20+4 pin ATX ATX Black
- Total Power
- 1200 W
- 80 Plus Certification
- 80 PLUS Gold
- Purpose
- PC
- Certification
- NRTL, FCC, CB, CE, TUV, KC, EAC
- Compliance Certificates
- RoHS
- Cooling Type
- Active
Specifications
Certificates
| Certification | NRTL, FCC, CB, CE, TUV, KC, EAC |
|---|---|
| Compliance Certificates | RoHS |
Design
| Cooling Type | Active |
|---|---|
| Fan Diameter | 13.5 cm |
| Fan Location | Top |
| Number Of Fans | 1 fan(s) |
| Product Colour | Black |
Operational conditions
| Operating Relative Humidity (H-H) | 5 - 95% |
|---|---|
| Operating Temperature (T-T) | 0 - 50 °C |
| Storage Relative Humidity (H-H) | 5 - 95% |
| Storage Temperature (T-T) | -20 - 70 °C |
Packaging content
| Cables Included | AC, CPU, PCIe, SATA |
|---|
Packaging data
| Package Type | Box |
|---|
Performance
| 80 Plus Certification | 80 PLUS Gold |
|---|---|
| Atx Version | 2.3 |
| Eps Version | 2.92 |
| Power Supply Unit (Psu) Form Factor | ATX |
| Purpose | PC |
Ports & interfaces
| Cabling Type | Fully-Modular |
|---|---|
| Cpu P4 Connector (4-Pin) | 1 |
| Cpu Power Cable Length | 65 cm |
| Cpu Power Connector (4+4 Pin) | Yes |
| Motherboard Power Cable Length | 55 cm |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Sata Power Connectors | 3 |
| Pci Express Connector | Yes |
| Pci Express Power Cable Length | 55 cm |
| Pci Express Power Connectors (6+2 Pin) | 6 |
| Sata Power Cable Length | 450 mm |
Power
| Ac Input Frequency | 50 - 60 Hz |
|---|---|
| Ac Input Voltage | 100 - 240 V |
| Combined Power (+12v) | 1200 W |
| Combined Power (-12v) | 3.6 W |
| Combined Power (+3.3v) | 130 W |
| Combined Power (+5v) | 130 W |
| Combined Power (+5vsb) | 20 W |
| Efficiency | 92% |
| Input Current | 15 A |
| Maximum Input Current (@110v) | 15 A |
| Max Output Current (+12v) | 100 A |
| Max Output Current (-12v) | 0.3 A |
| Max Output Current (+3.3v) | 25 A |
| Max Output Current (+5v) | 25 A |
| Max Output Current (+5vsb) | 4 A |
| Power Factor | 99 |
| Power Factor Correction (Pfc) Type | Active |
| Power Protection Features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Total Power | 1200 W |
Weight & dimensions
| Depth | 180 mm |
|---|---|
| Height | 86 mm |
| Weight | 3.7 kg |
| Width | 150 mm |
