Home / Power Supplies / StarTech.com 450 Watt ATX12V 2.3 80 Plus Gold Computer Power Supply w/ Active PFC
StarTech.com · MPN ATX2PW450GO · StarTech.com 450 Watt ATX12V 2.3 80 Plus Gold Computer Power Supply w/ Active PFC

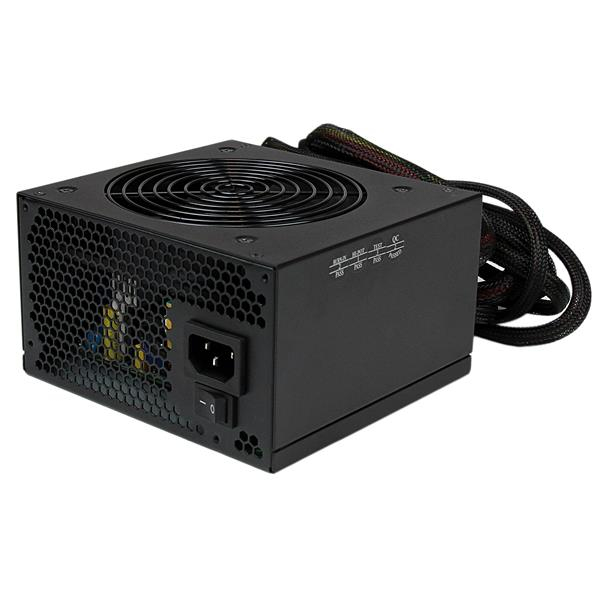

StarTech.com 450 Watt ATX12V 2.3 80 Plus Gold Computer Power Supply w/ Active PFC
- Total Power
- 450 W
- 80 Plus Certification
- 80 PLUS Gold
- Purpose
- PC
- Compliance Certificates
- RoHS
- Cooling Type
- Active
- Fan Diameter
- 12 cm
Specifications
Certificates
| Compliance Certificates | RoHS |
|---|
Design
| Cooling Type | Active |
|---|---|
| Fan Diameter | 12 cm |
| Fan Location | Top |
| Number Of Fans | 1 fan(s) |
| On/Off Switch | Yes |
| Product Colour | Black |
Operational conditions
| Operating Temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage Temperature (T-T) | -20 - 80 °C |
Other features
| Maximum Current | 60 A |
|---|
Packaging data
| Package Depth | 240 mm |
|---|---|
| Package Height | 98 mm |
| Package Weight | 2.41 kg |
| Package Width | 202 mm |
Performance
| 80 Plus Certification | 80 PLUS Gold |
|---|---|
| Atx Version | 2.3 |
| Eps Version | 2.92 |
| Power Supply Unit (Psu) Form Factor | ATX |
| Purpose | PC |
Ports & interfaces
| Atx Power Connector (20+4 Pin) | Yes |
|---|---|
| Cabling Type | Non-Modular |
| Cpu P4 Connector (4-Pin) | 1 |
| Cpu Power Connector (4+4 Pin) | Yes |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Sata Power Connectors | 4 |
| Pci Express Connector | Yes |
| Pci Express Power Connectors (6-Pin) | 1 |
| Pci Express Power Connectors (8-Pin) | 1 |
| Peripheral (Molex) Power Connectors (4-Pin) | 3 |
Power
| Ac Input Frequency | 50 - 60 Hz |
|---|---|
| Ac Input Voltage | 100 - 240 V |
| Maximum Input Current (@110v) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V,-5V |
| Max Output Current (-12v) | 0.5 A |
| Max Output Current (+12v1) | 37 A |
| Max Output Current (+12v2) | 37 A |
| Max Output Current (+12v3) | 37 A |
| Max Output Current (+12v4) | 37 A |
| Max Output Current (+3.3v) | 20 A |
| Max Output Current (+5v) | 20 A |
| Max Output Current (+5vsb) | 2.5 A |
| Power Factor Correction (Pfc) Type | Active |
| Power Protection Features | Over current, Over power, Over voltage, Short circuit |
| Total Power | 450 W |
Weight & dimensions
| Depth | 150 mm |
|---|---|
| Height | 140 mm |
| Weight | 197 g |
| Width | 68 mm |
