Home / Power Supplies / Hiditec SX 500W power supply unit 20+4 pin ATX ATX Black
Hiditec · MPN PS00130001 · Hiditec SX 500W power supply unit 20+4 pin ATX ATX Black

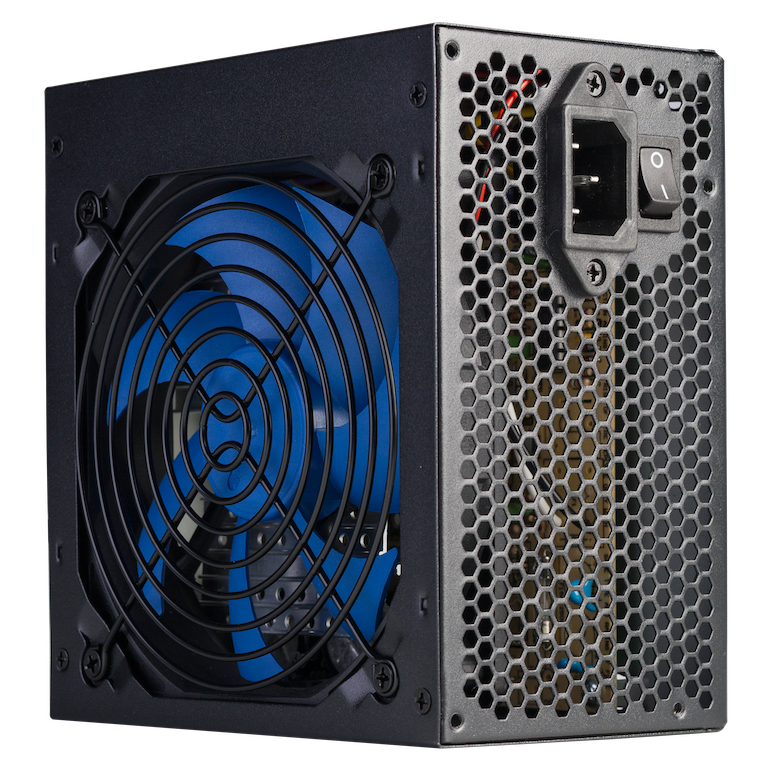

Hiditec SX 500W power supply unit 20+4 pin ATX ATX Black
- Total Power
- 500 W
- Purpose
- PC
- Compliance Certificates
- RoHS
- Fan Diameter
- 12 cm
- Product Colour
- Black
- Atx Version
- 2.2
Specifications
Certificates
| Compliance Certificates | RoHS |
|---|
Design
| Fan Diameter | 12 cm |
|---|---|
| Product Colour | Black |
Performance
| Atx Version | 2.2 |
|---|---|
| Noise Level | 21 dB |
| Power Supply Unit (Psu) Form Factor | ATX |
| Purpose | PC |
Ports & interfaces
| Atx Power Connector (20+4 Pin) | Yes |
|---|---|
| Cpu P4 Connector (4-Pin) | 1 |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Sata Power Connectors | 2 |
| Peripheral (Molex) Power Connectors (4-Pin) | 4 |
Power
| Ac Input Frequency | 50 - 60 Hz |
|---|---|
| Ac Input Voltage | 115 - 230 V |
| Max Output Current (+12v) | 16 A |
| Max Output Current (-12v) | 0.5 A |
| Max Output Current (+3.3v) | 18 A |
| Max Output Current (+5v) | 20 A |
| Max Output Current (+5vsb) | 2.5 A |
| Power Protection Features | Over voltage, Overload, Under power |
| Total Power | 500 W |
Technical details
| Sustainability Certificates | ENERGY STAR |
|---|
Weight & dimensions
| Depth | 85 mm |
|---|---|
| Height | 160 mm |
| Weight | 1.04 kg |
| Width | 150 mm |
