Home / Power Supplies / GIGABYTE XP-1200M power supply unit 1200 W 20+4 pin ATX ATX Black, Orange
GIGABYTE · MPN 9JXP1200M-00-10 · GIGABYTE XP-1200M power supply unit 1200 W 20+4 pin ATX ATX Black, Orange

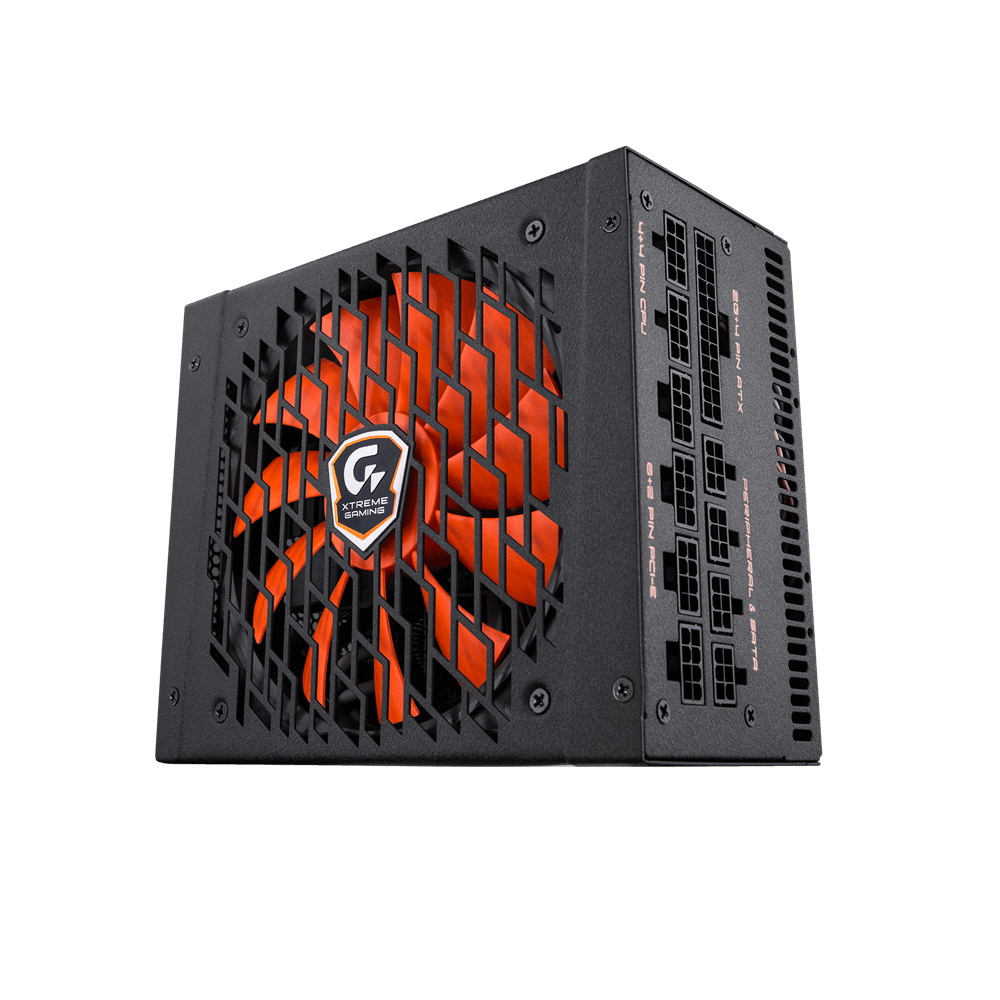

GIGABYTE XP-1200M power supply unit 1200 W 20+4 pin ATX ATX Black, Orange
- Total Power
- 1200 W
- 80 Plus Certification
- 80 PLUS Platinum
- Purpose
- PC
- Certification
- CE/BSMI/EAC/TUV/FCC/CCC/RCM
- Fan Diameter
- 14 cm
- Fan Location
- Top
Specifications
Certificates
| Certification | CE/BSMI/EAC/TUV/FCC/CCC/RCM |
|---|
Design
| Fan Diameter | 14 cm |
|---|---|
| Fan Location | Top |
| Number Of Fans | 1 fan(s) |
| Product Colour | Black, Orange |
Performance
| 80 Plus Certification | 80 PLUS Platinum |
|---|---|
| Atx Version | 2.31 |
| Bearing Technology | Ball bearing |
| Mean Time Between Failures (Mtbf) | 100000 h |
| Power Supply Unit (Psu) Form Factor | ATX |
| Purpose | PC |
Ports & interfaces
| Atx Power Connector (20+4 Pin) | Yes |
|---|---|
| Cabling Type | Fully-Modular |
| Cpu Power Cable Length | 80 cm |
| Cpu Power Connector (4+4 Pin) | Yes |
| Floppy Disk Drive Cable Length | 10 cm |
| Floppy Disk Drive Connector | Yes |
| Motherboard Power Cable Length | 70 cm |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Sata Power Connectors | 12 |
| Pci Express Power Cable Length | 65 cm |
| Pci Express Power Connectors (6+2 Pin) | 6 |
| Peripheral (Molex) Power Cable Length | 150,550 mm |
| Peripheral (Molex) Power Connectors (4-Pin) | 8 |
| Sata Power Cable Length | 150,550 mm |
Power
| Ac Input Frequency | 50 - 60 Hz |
|---|---|
| Ac Input Voltage | 115 - 240 V |
| Combined Power (+12v) | 120 W |
| Combined Power (-12v) | 3.6 W |
| Combined Power (+3.3v) | 120 W |
| Combined Power (+5v) | 1200 W |
| Combined Power (+5vsb) | 12.5 W |
| Efficiency | 92% |
| Input Current | 10 A |
| Max Output Current (+12v) | 100 A |
| Max Output Current (-12v) | 0.3 A |
| Max Output Current (+3.3v) | 25 A |
| Max Output Current (+5v) | 22 A |
| Max Output Current (+5vsb) | 2.5 A |
| Power Factor Correction (Pfc) Type | Active |
| Power Protection Features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Total Power | 1200 W |
Weight & dimensions
| Depth | 150 mm |
|---|---|
| Height | 86 mm |
| Width | 180 mm |
