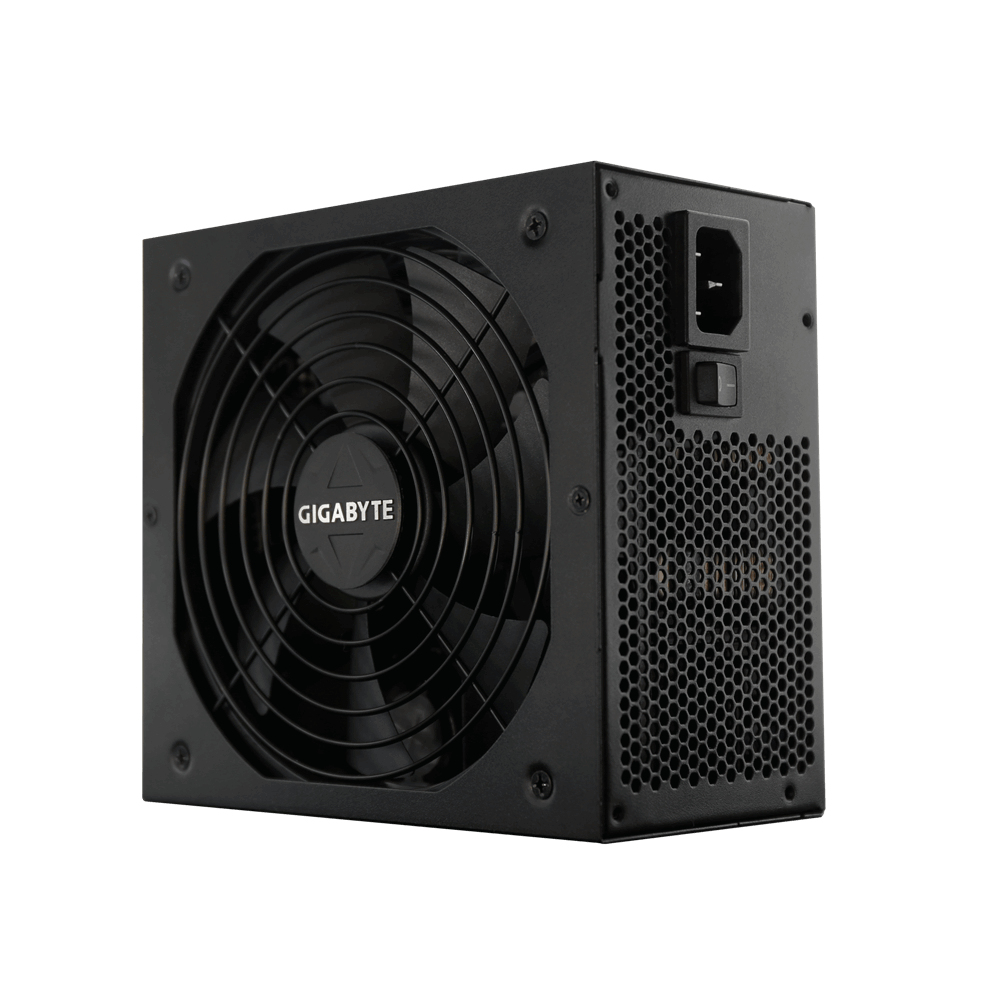

Home / Power Supplies / GIGABYTE GB-G750H power supply unit 750 W 20+4 pin ATX ATX Black
GIGABYTE · MPN GB-G750H · GIGABYTE GB-G750H power supply unit 750 W 20+4 pin ATX ATX Black
GIGABYTE GB-G750H power supply unit 750 W 20+4 pin ATX ATX Black
- Total Power
- 750 W
- 80 Plus Certification
- 80 PLUS Gold
- Purpose
- PC
- Certification
- CE/BSMI/EAC/TUV/FCC/CCC/RCM
- Cooling Type
- Active
- Fan Diameter
- 14 cm
Specifications
Certificates
| Certification | CE/BSMI/EAC/TUV/FCC/CCC/RCM |
|---|
Design
| Cooling Type | Active |
|---|---|
| Fan Diameter | 14 cm |
| Fan Location | Top |
| Number Of Fans | 1 fan(s) |
| Product Colour | Black |
Performance
| 80 Plus Certification | 80 PLUS Gold |
|---|---|
| Atx Version | 2.31 |
| Mean Time Between Failures (Mtbf) | 100000 h |
| Power Supply Unit (Psu) Form Factor | ATX |
| Purpose | PC |
Ports & interfaces
| Atx Power Connector (20+4 Pin) | Yes |
|---|---|
| Cabling Type | Semi-Modular |
| Cpu Power Connector (4+4 Pin) | Yes |
| Floppy Disk Drive Connector | Yes |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Sata Power Connectors | 7 |
| Pci Express Connector | Yes |
| Pci Express Power Connectors (6+2 Pin) | 4 |
| Peripheral (Molex) Power Connectors (4-Pin) | 3 |
Power
| Ac Input Frequency | 47 - 63 Hz |
|---|---|
| Ac Input Voltage | 100 - 240 V |
| Combined Power (+12v) | 744 W |
| Combined Power (-12v) | 3.6 W |
| Combined Power (+3.3v) | 120 W |
| Combined Power (+5v) | 120 W |
| Combined Power (+5vsb) | 12.5 W |
| Efficiency | 90% |
| Input Current | 10 A |
| Max Output Current (+12v) | 62 A |
| Max Output Current (-12v) | 0.3 A |
| Max Output Current (+3.3v) | 22 A |
| Max Output Current (+5v) | 22 A |
| Max Output Current (+5vsb) | 2.5 A |
| Power Factor Correction (Pfc) Type | Active |
| Power Protection Features | Over power, Over voltage, Short circuit, Under voltage |
| Total Power | 750 W |
Weight & dimensions
| Depth | 160 mm |
|---|---|
| Height | 86 mm |
| Width | 150 mm |
