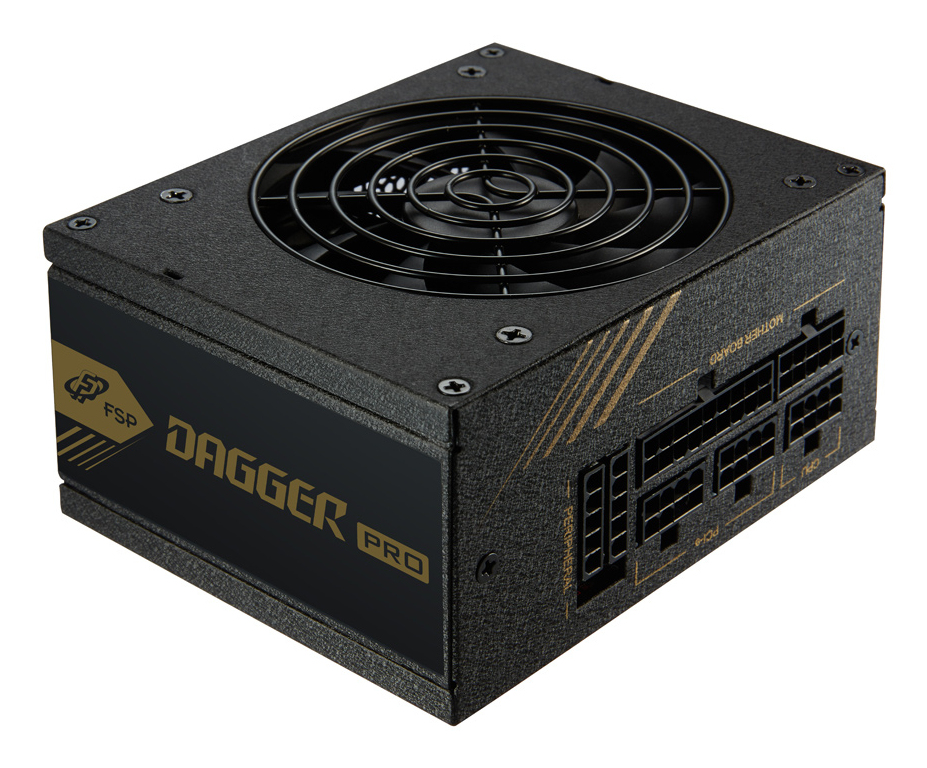

Home / Power Supplies / FSP DAGGER PRO 650W Power supply unit SFX SFX3.3 Black
FSP · MPN PPA6504801 · FSP DAGGER PRO 650W Power supply unit SFX SFX3.3 Black
FSP DAGGER PRO 650W Power supply unit SFX SFX3.3 Black
- Total Power
- 650 W
- 80 Plus Certification
- 80 PLUS Gold
- Purpose
- PC
- Cooling Type
- Active
- Fan Diameter
- 9.2 cm
- Fan Location
- Top
Specifications
Design
| Cooling Type | Active |
|---|---|
| Fan Diameter | 9.2 cm |
| Fan Location | Top |
| Number Of Fans | 1 fan(s) |
| On/Off Switch | Yes |
| Product Colour | Black |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|---|
| Warranty Period | 7 year(s) |
Packaging content
| Cables Included | CPU, PCIe, Peripheral (Molex), SATA |
|---|
Performance
| 80 Plus Certification | 80 PLUS Gold |
|---|---|
| Bearing Technology | Ball bearing |
| Mean Time Between Failures (Mtbf) | 200000 h |
| Noise Level | 40 dB |
| Power Supply Unit (Psu) Form Factor | SFX |
| Purpose | PC |
| Silent Mode | Yes |
Ports & interfaces
| Cabling Type | Fully-Modular |
|---|---|
| Cpu Power Cable Length | 85 cm |
| Cpu Power Connector (4+4 Pin) | Yes |
| Eps Power Connector (4+4 Pin) | Yes |
| Floppy Drive Power Connector | 1 |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Sata Power Connectors | 5 |
| Pci Express Power Connectors (6+2 Pin) | 2 |
| Peripheral (Molex) Power Connectors (4-Pin) | 2 |
Power
| Ac Input Frequency | 50 - 60 Hz |
|---|---|
| Ac Input Voltage | 100 - 240 V |
| Combined Power (+12v) | 648 W |
| Combined Power (-12v) | 3.6 W |
| Combined Power (+3.3v) | 120 W |
| Combined Power (+5v) | 120 W |
| Combined Power (+5vsb) | 12.5 W |
| Efficiency | 90% |
| Maximum Input Current (@110v) | 10 A |
| Maximum Input Current (@220v) | 5 A |
| Max Output Current (+12v) | 54 A |
| Max Output Current (-12v) | 0.3 A |
| Max Output Current (+3.3v) | 20 A |
| Max Output Current (+5v) | 22 A |
| Max Output Current (+5vsb) | 2.5 A |
| Power Protection Features | Over current, Over power, Over voltage, Overheating, Short circuit |
| Total Power | 650 W |
Weight & dimensions
| Depth | 125 mm |
|---|---|
| Height | 63.5 mm |
| Width | 100 mm |
