Home / Power Supplies / CoolBox T300 power supply unit 300 W 20+4 pin ATX TFX Grey
CoolBox · MPN COO-FA300TBZ · CoolBox T300 power supply unit 300 W 20+4 pin ATX TFX Grey

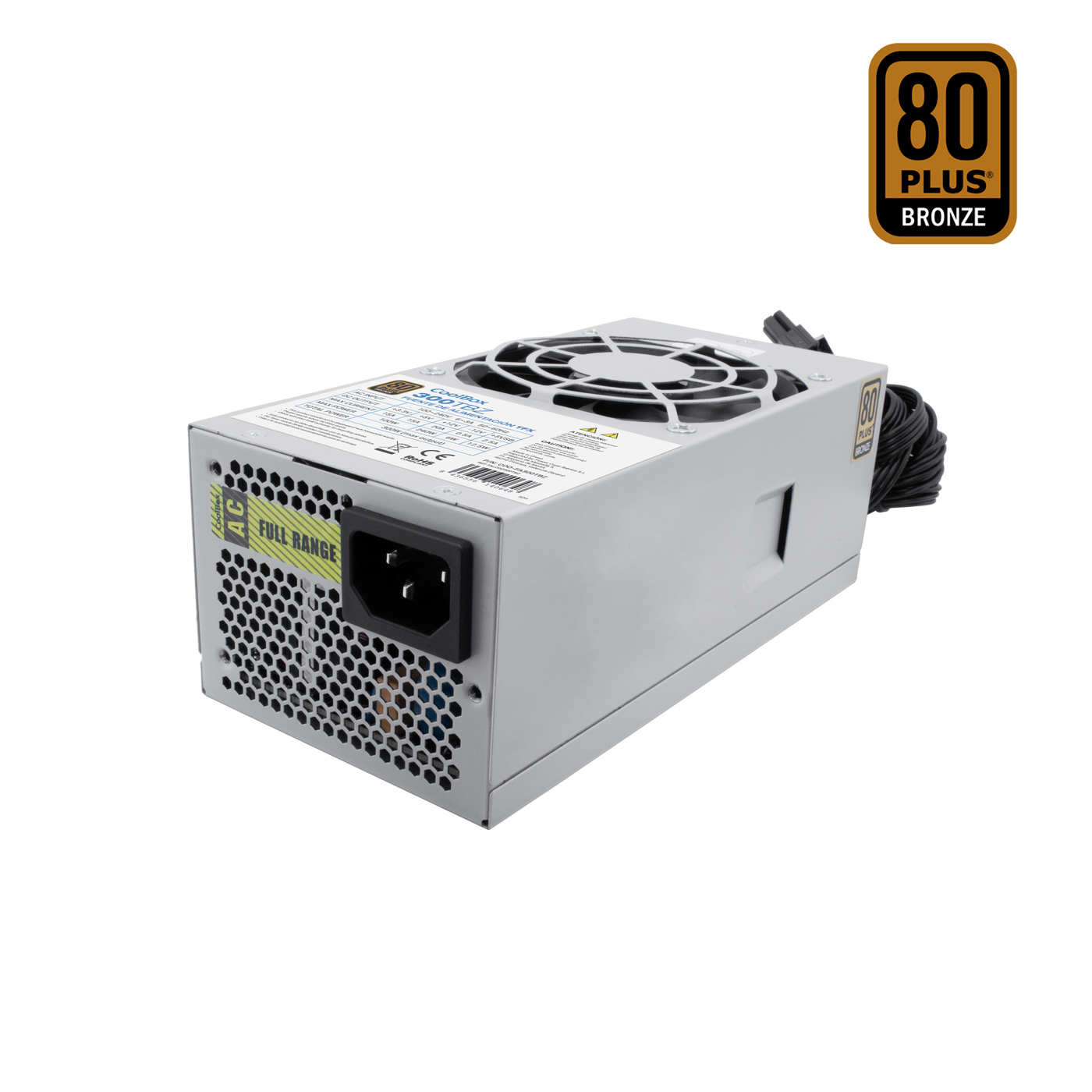

CoolBox T300 power supply unit 300 W 20+4 pin ATX TFX Grey
- Total Power
- 300 W
- 80 Plus Certification
- 80 PLUS Bronze
- Purpose
- PC
- Fan Diameter
- 8 cm
- Number Of Fans
- 1 fan(s)
- Product Colour
- Grey
Specifications
Design
| Fan Diameter | 8 cm |
|---|---|
| Number Of Fans | 1 fan(s) |
| Product Colour | Grey |
Operational conditions
| Operating Relative Humidity (H-H) | 10 - 85% |
|---|---|
| Operating Temperature (T-T) | 0 - 50 °C |
Performance
| 80 Plus Certification | 80 PLUS Bronze |
|---|---|
| Atx Version | 2.3 |
| Mean Time Between Failures (Mtbf) | 100000 h |
| Power Supply Unit (Psu) Form Factor | TFX |
| Purpose | PC |
Ports & interfaces
| Cabling Type | Non-Modular |
|---|---|
| Cpu P4 Connector (4-Pin) | 1 |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Sata Power Connectors | 3 |
| Peripheral (Molex) Power Connectors (4-Pin) | 1 |
Power
| Ac Input Frequency | 47 - 63 Hz |
|---|---|
| Ac Input Voltage | 180 - 240 V |
| Maximum Input Current (@110v) | +12V1,+12V2,+3.3V,+5Vsb,-12V |
| Max Output Current (-12v) | 0.5 A |
| Max Output Current (+12v1) | 10 A |
| Max Output Current (+12v2) | 10 A |
| Max Output Current (+3.3v) | 6 A |
| Max Output Current (+5v) | 6 A |
| Max Output Current (+5vsb) | 2 A |
| Power Protection Features | Over current, Over voltage, Short circuit |
| Total Power | 300 W |
Weight & dimensions
| Depth | 65 mm |
|---|---|
| Height | 175 mm |
| Weight | 750 g |
| Width | 185 mm |
