Home / Power Supplies / Chieftec GDP-750C power supply unit 750 W 20+4 pin ATX PS/2 Black
Chieftec · MPN GDP-750C · Chieftec GDP-750C power supply unit 750 W 20+4 pin ATX PS/2 Black

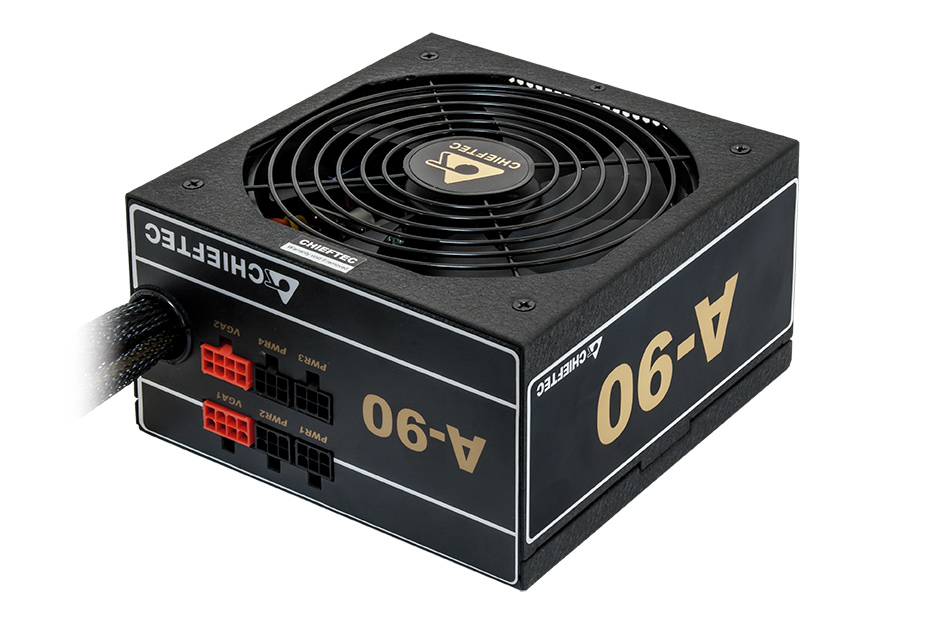

Chieftec GDP-750C power supply unit 750 W 20+4 pin ATX PS/2 Black
- Total Power
- 750 W
- Purpose
- PC
- Fan Diameter
- 14 cm
- Fan Location
- Top
- Number Of Fans
- 1 fan(s)
- Product Colour
- Black
Specifications
Design
| Fan Diameter | 14 cm |
|---|---|
| Fan Location | Top |
| Number Of Fans | 1 fan(s) |
| Product Colour | Black |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Other features
| Frequency Tolerance | 90% |
|---|
Performance
| Atx Version | 2.3 |
|---|---|
| Power Supply Unit (Psu) Form Factor | PS/2 |
| Purpose | PC |
Ports & interfaces
| Cabling Type | Semi-Modular |
|---|---|
| Eps Power Connector (8-Pin) | Yes |
| Floppy Drive Power Connector | 1 |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Sata Power Connectors | 8 |
| Pci Express Power Connectors (6+2 Pin) | 4 |
| Peripheral (Molex) Power Connectors (4-Pin) | 3 |
Power
| Ac Input Frequency | 47 - 63 Hz |
|---|---|
| Ac Input Voltage | 200 - 240 V |
| Combined Power (+12v) | 744 W |
| Combined Power (+3.3v) | 120 W |
| Combined Power (+5v) | 120 W |
| Combined Power (+5vsb) | 2.5 W |
| Max Output Current (-12v) | 0.3 A |
| Max Output Current (+12v1) | 62 A |
| Max Output Current (+3.3v) | 22 A |
| Max Output Current (+5v) | 22 A |
| Power Factor | 0.9 |
| Power Factor Correction (Pfc) Type | Active |
| Power Protection Features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Total Power | 750 W |
Weight & dimensions
| Depth | 150 mm |
|---|---|
| Height | 87 mm |
| Width | 160 mm |
