Home / Power Supplies / be quiet! System Power 10 power supply unit 750 W 20+4 pin ATX ATX Black
be quiet! · MPN BN329 · be quiet! System Power 10 power supply unit 750 W 20+4 pin ATX ATX Black

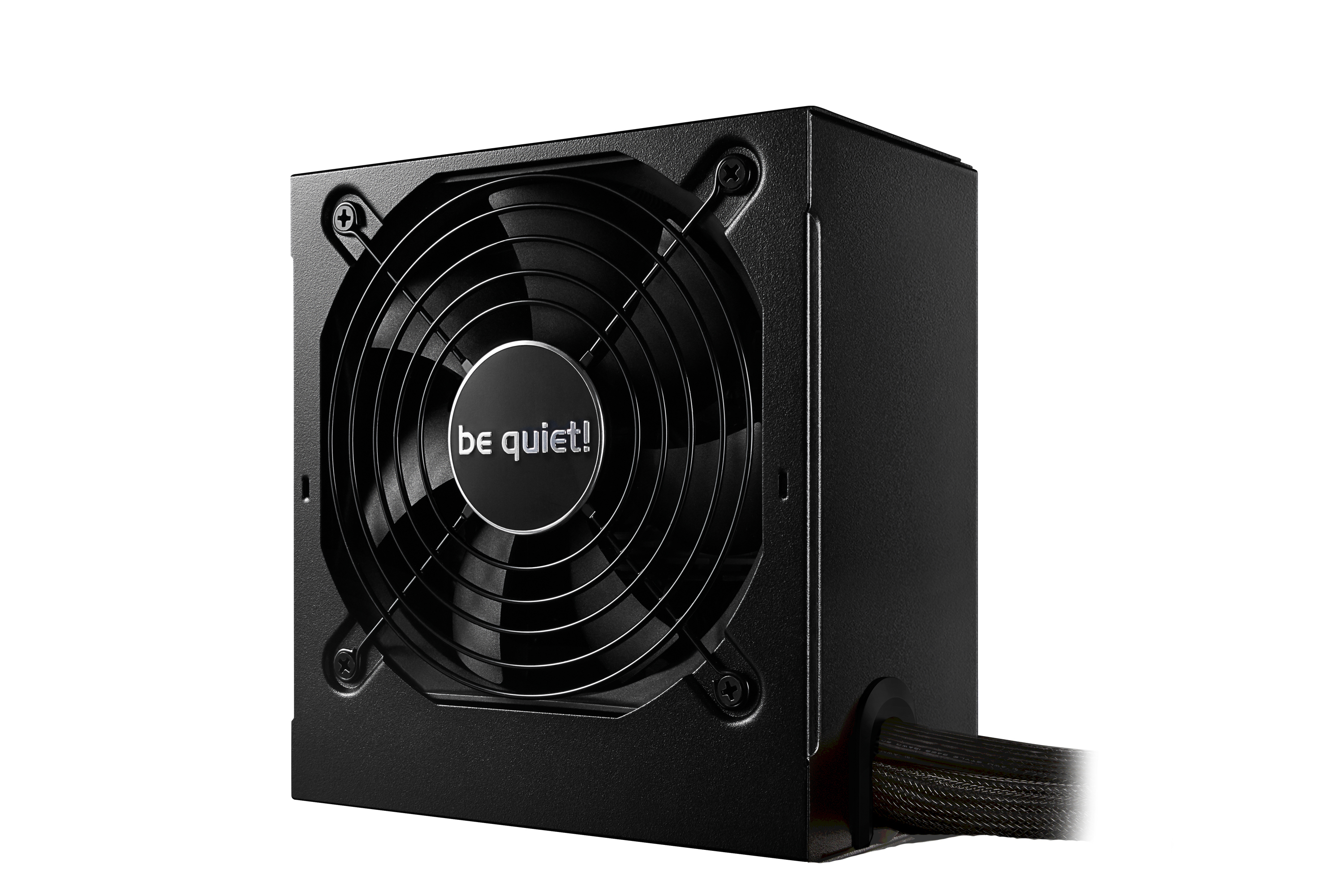

be quiet! System Power 10 power supply unit 750 W 20+4 pin ATX ATX Black
- Total Power
- 750 W
- 80 Plus Certification
- 80 PLUS Bronze
- Purpose
- PC
- Certification
- CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia)
- Compliance Certificates
- CCC, CE, Federal Communications Commission (FCC), RoHS, WEEE
- Cooling Type
- Active
Specifications
Certificates
| Certification | CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia) |
|---|---|
| Compliance Certificates | CCC, CE, Federal Communications Commission (FCC), RoHS, WEEE |
Design
| Cooling Type | Active |
|---|---|
| Fan Diameter | 12 cm |
| Fan Speed | 0 - 2100 RPM |
| Illumination | No |
| Number Of Fans | 1 fan(s) |
| On/Off Switch | Yes |
| Product Colour | Black |
Logistics data
| Country Of Origin | Germany |
|---|---|
| Warranty Period | 5 year(s) |
Operational conditions
| Operating Relative Humidity (H-H) | 0 - 90% |
|---|---|
| Operating Temperature (T-T) | 0 - 40 °C |
| Storage Relative Humidity (H-H) | 0 - 95% |
| Storage Temperature (T-T) | -20 - 70 °C |
Other features
| Noise Level (Full-Load Mode, 100%) | 34.7 dB |
|---|---|
| Noise Level (Quiet Mode, 50%) | 13.3 dB |
| Noise Level (Silent Mode, <30%) | 8.9 dB |
| Screws Included | Yes |
Packaging data
| Manual | Yes |
|---|---|
| Manual Languages | German, English, Spanish, French, Polish, Russian |
| Package Depth | 268 mm |
| Package Height | 97 mm |
| Package Weight | 2.3 kg |
| Package Width | 195 mm |
Performance
| 80 Plus Certification | 80 PLUS Bronze |
|---|---|
| Atx Version | 2.52 |
| Bearing Technology | Sleeve |
| Eps Version | 2.92 |
| Mean Time Between Failures (Mtbf) | 100000 h |
| Noise Level | 34.7 dB |
| Power Supply Unit (Psu) Form Factor | ATX |
| Purpose | PC |
Ports & interfaces
| Atx Power Connector (20+4 Pin) | Yes |
|---|---|
| Cabling Type | Non-Modular |
| Cpu Power Cable Length | 60 cm |
| Cpu Power Connector (4+4 Pin) | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Motherboard Power Cable Length | 55 cm |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Pata Power Connectors | 1 |
| Number Of Sata Power Connectors | 6 |
| Pci Express Connector | Yes |
| Pci Express Power Cable Length | 65 cm |
| Pci Express Power Connectors (6+2 Pin) | 4 |
| Peripheral (Molex) Power Cable Length | 790 mm |
| Peripheral (Molex) Power Connectors (4-Pin) | 1 |
| Sata Power Cable Length | 450,550,570,670,690,790 mm |
Power
| Ac Input Frequency | 50 Hz |
|---|---|
| Ac Input Voltage | 200 - 240 V |
| Combined Power (+12v) | 750 W |
| Combined Power (-12v) | 3.6 W |
| Combined Power (+3.3v) | 130 W |
| Combined Power (+5v) | 130 W |
| Combined Power (+5vsb) | 15 W |
| Efficiency | 89.1% |
| Hold Time | 17 ms |
| Input Current | 5 A |
| Max Output Current (+12v) | 62.5 A |
| Max Output Current (-12v) | 0.3 A |
| Max Output Current (+3.3v) | 20 A |
| Max Output Current (+5v) | 20 A |
| Max Output Current (+5vsb) | 3 A |
| Power Factor | 0.95 |
| Power Factor Correction (Pfc) Type | Active |
| Power Good Signal Delay Range | 100 - 150 ms |
| Power Protection Features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Total Power | 750 W |
Technical details
| Sustainability Certificates | ENERGY STAR, ErP |
|---|
Weight & dimensions
| Depth | 86 mm |
|---|---|
| Height | 150 mm |
| Weight | 1.95 kg |
| Width | 140 mm |
