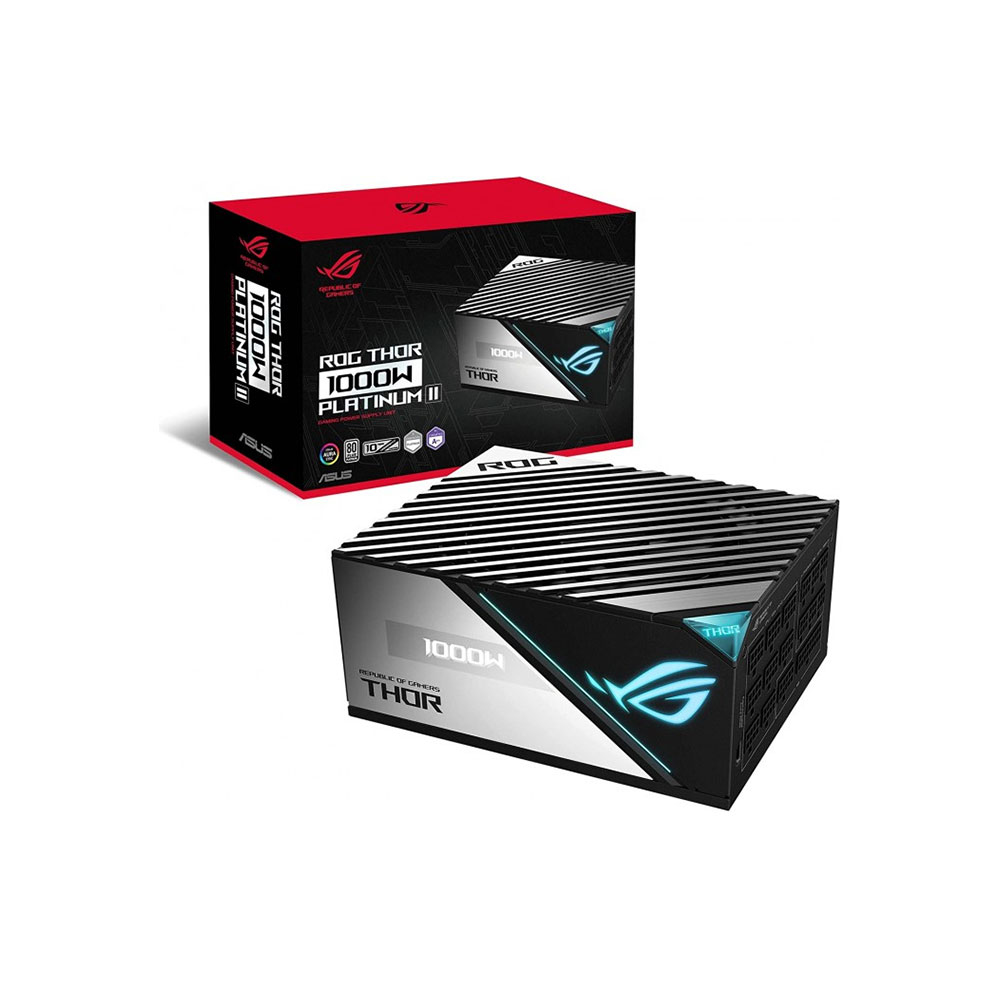

Home / Power Supplies / ASUS ROG THOR 1000P2-GAMING power supply unit 1000 W 20+4 pin ATX ATX Black, Silver
ASUS · MPN 90YE00L4-B0NA00 · ASUS ROG THOR 1000P2-GAMING power supply unit 1000 W 20+4 pin ATX ATX Black, Silver
ASUS ROG THOR 1000P2-GAMING power supply unit 1000 W 20+4 pin ATX ATX Black, Silver
- Total Power
- 1000 W
- 80 Plus Certification
- 80 PLUS Platinum
- Purpose
- PC
- Certification
- ROHS
- Compliance Certificates
- RoHS
- Cooling Type
- Active
Specifications
Certificates
| Certification | ROHS |
|---|---|
| Compliance Certificates | RoHS |
Design
| Cooling Type | Active |
|---|---|
| Illumination | Yes |
| Led Indicators | Yes |
| Product Colour | Black, Silver |
Packaging content
| Cables Included | CPU, DC, PCIe, Peripheral (Molex), SATA |
|---|---|
| Cable Tie(S) Included | Yes |
Performance
| 80 Plus Certification | 80 PLUS Platinum |
|---|---|
| Noise Level | 0 dB |
| Power Supply Unit (Psu) Form Factor | ATX |
| Purpose | PC |
| Silent Mode | Yes |
Ports & interfaces
| Cabling Type | Fully-Modular |
|---|---|
| Cpu P4 Connector (4-Pin) | 2 |
| Cpu Power Connector (4+4 Pin) | Yes |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Sata Power Connectors | 12 |
| Pci Express Connector | Yes |
| Pci Express Power Connectors (6+2 Pin) | 8 |
| Pci Express Power Connectors (8-Pin) | 1 |
| Peripheral (Molex) Power Connectors (4-Pin) | 6 |
Power
| Ac Input Voltage | 100 - 240 V |
|---|---|
| Combined Power (+12v) | 996 W |
| Combined Power (-12v) | 3.6 W |
| Combined Power (+3.3v) | 125 W |
| Combined Power (+5v) | 125 W |
| Combined Power (+5vsb) | 15 W |
| Maximum Input Current (@220v) | 83 A |
| Max Output Current (+12v) | 83 A |
| Max Output Current (-12v) | 0.3 A |
| Max Output Current (+3.3v) | 25 A |
| Max Output Current (+5v) | 125 A |
| Max Output Current (+5vsb) | 3 A |
| Power Protection Features | Over current, Over power, Over voltage, Overdischarge, Short circuit, Under voltage |
| Total Power | 1000 W |
Weight & dimensions
| Depth | 150 mm |
|---|---|
| Height | 86 mm |
| Weight | 2.37 kg |
| Width | 190 mm |
