Home / Power Supplies / ASUS ROG Strix 850W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black
ASUS · MPN 90YE00P2-B0NA00 · ASUS ROG Strix 850W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black

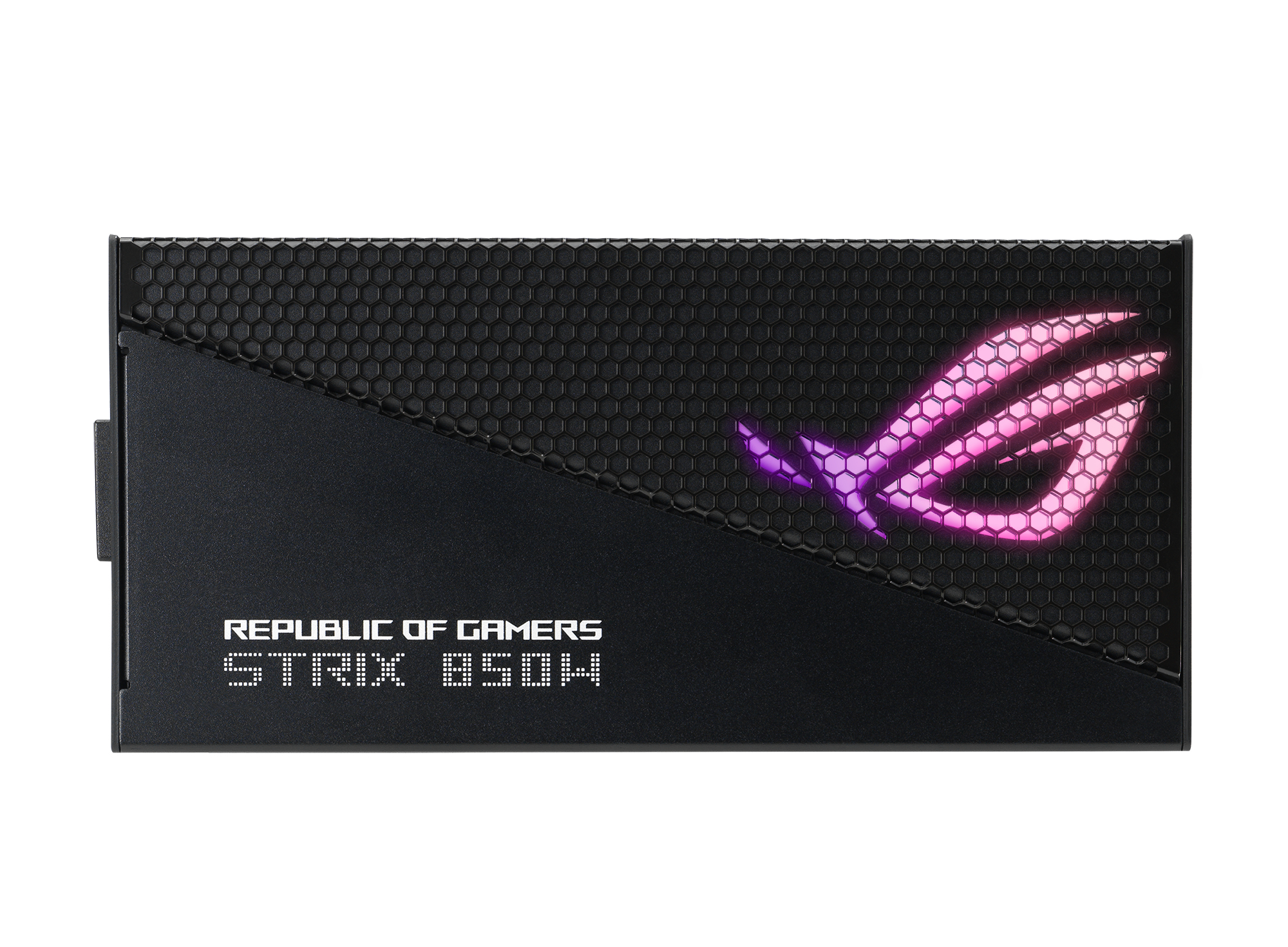

ASUS ROG Strix 850W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black
- Total Power
- 850 W
- 80 Plus Certification
- 80 PLUS Gold
- Purpose
- PC
- Compliance Certificates
- RoHS
- Cooling Type
- Active
- Fan Diameter
- 13.5 cm
Specifications
Certificates
| Compliance Certificates | RoHS |
|---|
Design
| Cooling Type | Active |
|---|---|
| Fan Diameter | 13.5 cm |
| Illumination | Yes |
| Number Of Fans | 1 fan(s) |
| On/Off Switch | Yes |
| Product Colour | Black |
Packaging content
| Cables Included | AC, CPU, PCIe, Peripheral (Molex), SATA |
|---|
Packaging data
| Package Type | Box |
|---|---|
| Package Weight | 3.22 kg |
Performance
| 80 Plus Certification | 80 PLUS Gold |
|---|---|
| Atx Version | 3.0 |
| Bearing Technology | Ball bearing |
| Power Supply Unit (Psu) Form Factor | ATX |
| Purpose | PC |
| Silent Mode | Yes |
Ports & interfaces
| Atx Power Connector (20+4 Pin) | Yes |
|---|---|
| Cabling Type | Fully-Modular |
| Cpu Power Cable Length | 65 cm |
| Cpu Power Connector (4+4 Pin) | Yes |
| Motherboard Power Cable Length | 60 cm |
| Motherboard Power Connector | 20+4 pin ATX |
| Number Of Sata Power Connectors | 5 |
| Pci Express Power Connectors (16-Pin) | 1 |
| Pci Express Power Connectors (8-Pin) | 3 |
| Peripheral (Molex) Power Cable Length | 150,400 mm |
| Peripheral (Molex) Power Connectors (4-Pin) | 4 |
| Sata Power Cable Length | 120,400 mm |
Power
| Ac Input Voltage | 100 - 240 V |
|---|---|
| Combined Power (+12v) | 849.6 W |
| Combined Power (-12v) | 3.6 W |
| Combined Power (+3.3v) | 120 W |
| Combined Power (+5vsb) | 15 W |
| Max Output Current (+12v) | 70.8 A |
| Max Output Current (-12v) | 0.3 A |
| Max Output Current (+3.3v) | 22 A |
| Max Output Current (+5v) | 22 A |
| Max Output Current (+5vsb) | 3 A |
| Power Protection Features | Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage |
| Total Power | 850 W |
Technical details
| Sustainability Compliance | Yes |
|---|
Weight & dimensions
| Depth | 150 mm |
|---|---|
| Height | 86 mm |
| Weight | 2.73 kg |
| Width | 180 mm |
