Home / Motherboards / MSI MPG Z590 GAMING EDGE WIFI motherboard Intel Z590 LGA 1200 (Socket H5) ATX
MSI · MPN MPG Z590 GAMING EDGE WIFI · MSI MPG Z590 GAMING EDGE WIFI motherboard Intel Z590 LGA 1200 (Socket H5) ATX

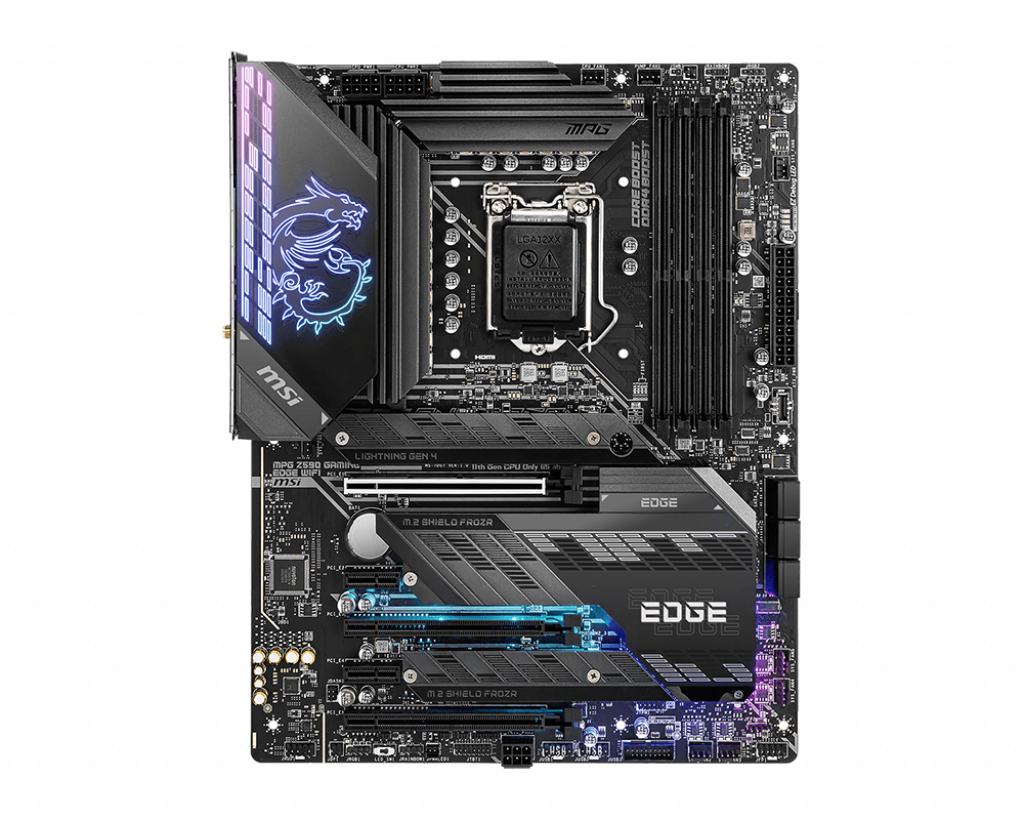

MSI MPG Z590 GAMING EDGE WIFI motherboard Intel Z590 LGA 1200 (Socket H5) ATX
- Motherboard Chipset
- Intel Z590
- Processor Socket
- LGA 1200 (Socket H5)
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 128 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 6.2 |
|---|---|
| Bios Memory Size | 256 Mbit |
| Bios Type | UEFI AMI |
| Clear Cmos Jumper | Yes |
| System Management Bios (Smbios) Version | 3.0 |
Expansion slots
| Number Of M.2 (M) Slots | 3 |
|---|---|
| Pci Express X16 (Gen 3.X) Slots | 3 |
| Pci Express X1 (Gen 3.X) Slots | 2 |
Features
| Audio Chip | Realtek ALC4080 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | Intel Z590 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | ATX |
| Number Of Mounting Holes | 9 |
| Pc Health Monitoring | Fan, Temperature |
| Windows Operating Systems Supported | Windows 10 x64 |
Graphics
| Maximum Resolution | 3840 x 2160 pixels |
|---|---|
| Parallel Processing Technology Support | Crossfire |
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Chassis Intrusion Connector | Yes |
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Number Of Sata Iii Connectors | 6 |
| Peripheral (Molex) Power Connectors (4-Pin) | 8 |
| Rgb Led Pin Header | Yes |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Connectors | 1 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 128 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speeds | 2133,2666,2933,3200,4000,4400,4700,5333 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 5.2 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan | Yes |
| Lan Controller | Intel I225-V |
| Top Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wlan Controller Model | Intel Wi-Fi 6E AX210 |
Packaging content
| Cables Included | SATA |
|---|---|
| Drivers Included | Yes |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
|---|---|
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1200 (Socket H5) |
| Supported Processor Sockets | LGA 1200 (Socket H5) |
Rear panel I/O ports
| Displayports Quantity | 1 |
|---|---|
| Displayport Version | 1.4 |
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 2.0b |
| Headphone Outputs | 5 |
| Microphone In | Yes |
| S/Pdif Out Port | Yes |
| Usb 2.0 Ports Quantity | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 2 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 3 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity | 1 |
| Usb Connector Type | USB Type-A, USB Type-C |
| Wifi-Ap Antenna Jack | 2 |
Storage controllers
| Number Of Storage Drives Supported | 9 |
|---|---|
| Raid Levels | 0, 1, 5, 10 |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
