Home / Motherboards / MSI MAG B760 TOMAHAWK WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
MSI · MPN MAG B760 TOMAHAWK WIFI DDR4 · MSI MAG B760 TOMAHAWK WIFI DDR4 motherboard Intel B760 LGA 1700 ATX

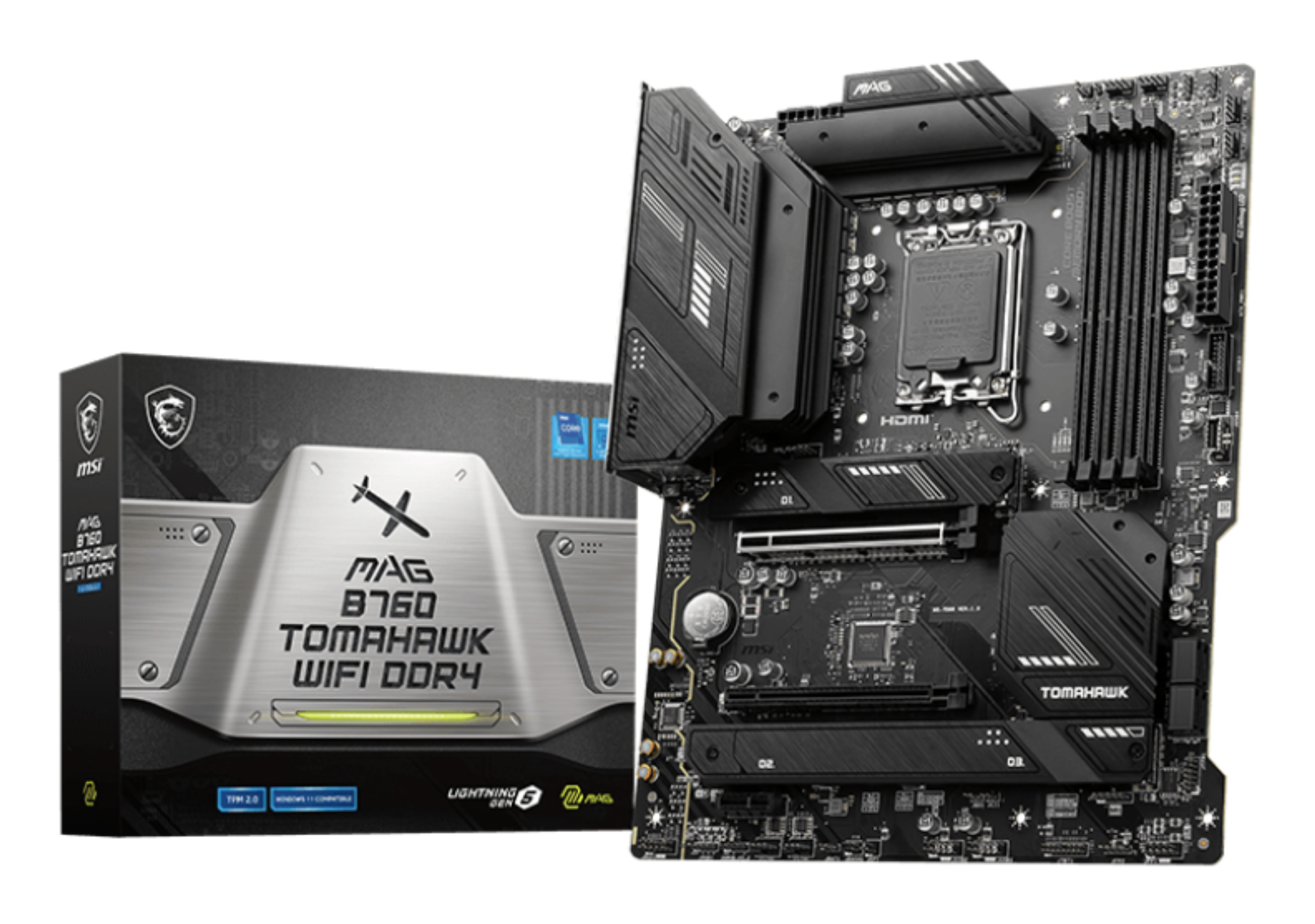

MSI MAG B760 TOMAHAWK WIFI DDR4 motherboard Intel B760 LGA 1700 ATX
- Motherboard Chipset
- Intel B760
- Processor Socket
- LGA 1700
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 128 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 6.4 |
|---|---|
| Bios Memory Size | 256 Mbit |
| Bios Type | UEFI AMI |
| System Management Bios (Smbios) Version | 3.5 |
Expansion slots
| Number Of M.2 (M) Slots | 3 |
|---|---|
| Pci Express X16 Slots | 2 |
| Pci Express X1 Slots | 1 |
Features
| Audio Chip | Realtek ALC897 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | Intel B760 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | ATX |
| Power Source Type | ATX |
| Product Colour | Black |
| Windows Operating Systems Supported | Windows 10, Windows 11 |
Graphics
| On-Board Graphics Card | No |
|---|---|
| Parallel Processing Technology Support | Not supported |
Internal I/O
| Atx Power Connector (24-Pin) | Yes |
|---|---|
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Sata Iii Connectors | 4 |
| Rgb Led Pin Header | Yes |
| S/Pdif Out Connector | Yes |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Connectors | 1 |
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 128 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speed (Max) | 5333 MHz |
| Supported Memory Clock Speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4400,4600,4800,5000,5066,5200,5333 MHz |
| Supported Memory Types | DDR4-SDRAM |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 5.3 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan | Yes |
| Top Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Pentium® Gold |
|---|---|
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1700 |
| Supported Processor Sockets | LGA 1700 |
Rear panel I/O ports
| Displayports Quantity | 1 |
|---|---|
| Displayport Version | 1.4 |
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 2.1 |
| Usb 2.0 Ports Quantity | 4 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 4 |
| Usb 3.2 Gen 2x2 Type-C Ports Quantity | 1 |
Storage controllers
| Raid Levels | 0, 1, 5, 10 |
|---|---|
| Raid Support | Yes |
| Supported Storage Drive Interfaces | M.2, SATA III |
Weight & dimensions
| Depth | 304.8 mm |
|---|---|
| Width | 243.8 mm |
