Home / Motherboards / MSI MAG B650M Mortar WIFI AMD B650 Socket AM5 micro ATX
MSI · MPN 7D76-001R · MSI MAG B650M Mortar WIFI AMD B650 Socket AM5 micro ATX

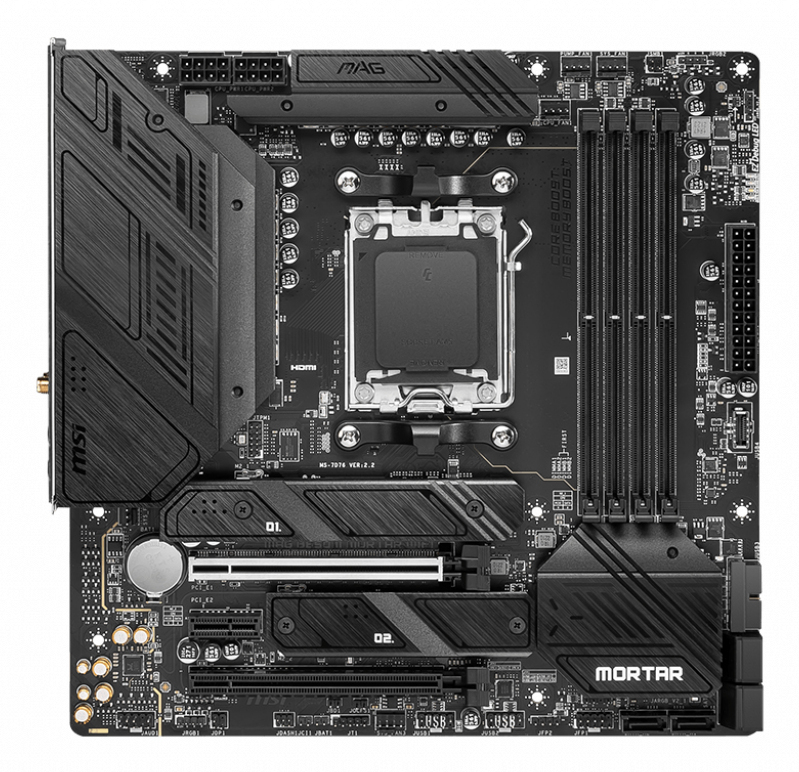

MSI MAG B650M Mortar WIFI AMD B650 Socket AM5 micro ATX
- Motherboard Chipset
- AMD B650
- Processor Socket
- Socket AM5
- Supported Memory Types
- DDR5-SDRAM
- Maximum Internal Memory
- 128 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
Expansion slots
| Number Of M.2 (M) Slots | 2 |
|---|---|
| Pci Express X16 (Gen 3.X) Slots | 1 |
Features
| Audio Chip | Realtek ALC4080 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | AMD B650 |
| Motherboard Chipset Family | AMD |
| Motherboard Form Factor | micro ATX |
| Pc Health Monitoring | Fan |
| Windows Operating Systems Supported | Windows 11 x64 |
Internal I/O
| Atx Power Connector (24-Pin) | Yes |
|---|---|
| Chassis Intrusion Connector | Yes |
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Usb 2.0 Connectors | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
Memory
| Maximum Internal Memory | 128 GB |
|---|---|
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Supported Memory Types | DDR5-SDRAM |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 5.2 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan | Yes |
| Lan Controller | Realtek RTL8125B |
| Top Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
Processor
| Compatible Processor Series | AMD Ryzen 7000 Series |
|---|---|
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM5 |
| Supported Processor Sockets | Socket AM5 |
Rear panel I/O ports
| Ethernet Lan (Rj-45) Ports | 1 |
|---|---|
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 2.1 |
| Headphone Outputs | 1 |
| Line-In | Yes |
| Microphone In | Yes |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 4 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 3 |
| Usb 3.2 Gen 2x2 Type-C Ports Quantity | 1 |
Storage controllers
| Raid Levels | 0, 1, 10 |
|---|---|
| Supported Storage Drive Interfaces | M.2, SATA |
Weight & dimensions
| Depth | 243.8 mm |
|---|---|
| Width | 243.8 mm |
