Home / Motherboards / MSI H310M PRO-VDH PLUS motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX
MSI · MPN H310M PRO-VDH PLUS · MSI H310M PRO-VDH PLUS motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX

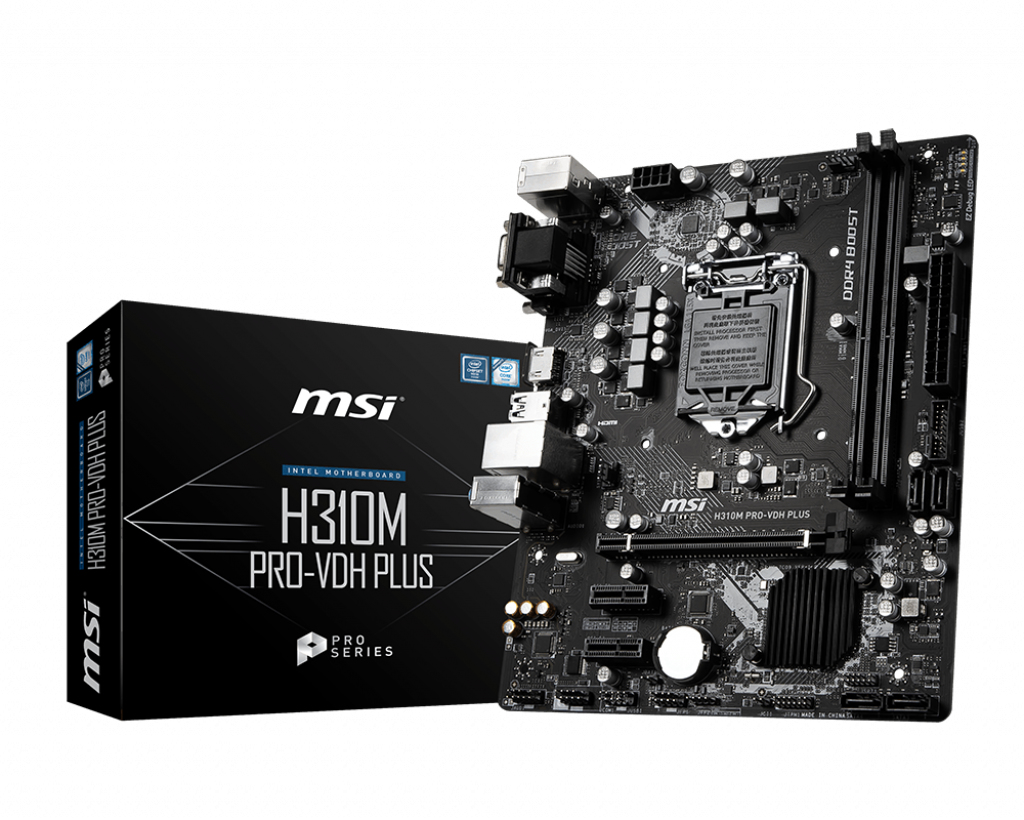

MSI H310M PRO-VDH PLUS motherboard Intel® H310 LGA 1151 (Socket H4) micro ATX
- Motherboard Chipset
- Intel® H310
- Processor Socket
- LGA 1151 (Socket H4)
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 32 GB
- Wi-Fi
- No
- Ethernet Lan
- Yes
Specifications
BIOS
| Bios Type | UEFI AMI |
|---|---|
| Clear Cmos Jumper | Yes |
Expansion slots
| Pci Express X16 (Gen 3.X) Slots | 1 |
|---|---|
| Pci Express X1 (Gen 2.X) Slots | 2 |
Features
| Audio Chip | Realtek ALC887 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Cooling Type | Passive |
| Motherboard Chipset | Intel® H310 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | micro ATX |
| Number Of Mounting Holes | 6 |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 10 |
Graphics
| Graphics Card Family | Intel |
|---|---|
| Hdcp | Yes |
| Maximum Resolution | 4096 x 2160 pixels |
| Number Of Displays Supported | 2 |
Internal I/O
| Atx Power Connector (24-Pin) | Yes |
|---|---|
| Chassis Intrusion Connector | Yes |
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 1 |
| Number Of Sata Iii Connectors | 4 |
| Serial Port Headers | 1 |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 1 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 32 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 2 |
| Supported Memory Clock Speeds | 2133,2400,2666 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Ethernet Interface Type | Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
| Lan Controller | Realtek RTL8111H |
| Wi-Fi | No |
Other features
| Quick Installation Guide | Yes |
|---|
Packaging content
| Cables Included | SATA |
|---|---|
| Drivers Included | Yes |
| Manual | Yes |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
|---|---|
| Intel Core I3/I5/I7/I9 Series | i3-8xxx, i5-8xxx, i7-8xxx |
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1151 (Socket H4) |
| Supported Processor Sockets | LGA 1151 (Socket H4) |
Processor special features
| Intel Extreme Memory Profile (Xmp) | Yes |
|---|---|
| Intel Rapid Storage Technology | Yes |
Rear panel I/O ports
| Dvi-D Ports Quantity | 1 |
|---|---|
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| Ps/2 Ports Quantity | 1 |
| Usb 2.0 Ports Quantity | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 2 |
| Vga (D-Sub) Ports Quantity | 1 |
Storage controllers
| Supported Storage Drive Interfaces | SATA III |
|---|---|
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 185 mm |
|---|---|
| Width | 226 mm |
