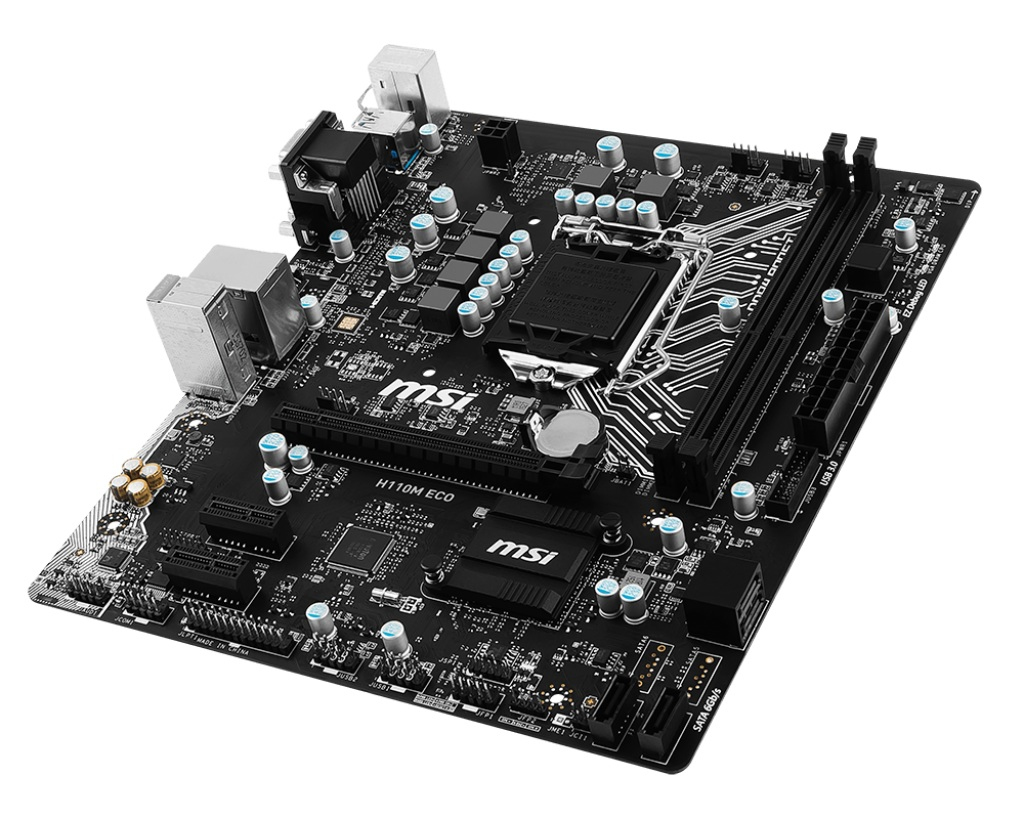

Home / Motherboards / MSI H110M ECO Intel® H110 LGA 1151 (Socket H4) micro ATX
MSI · MPN 7994-003R · MSI H110M ECO Intel® H110 LGA 1151 (Socket H4) micro ATX
MSI H110M ECO Intel® H110 LGA 1151 (Socket H4) micro ATX
- Motherboard Chipset
- Intel® H110
- Processor Socket
- LGA 1151 (Socket H4)
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 32 GB
- Wi-Fi
- No
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 5.0 |
|---|---|
| Bios Type | UEFI |
| Clear Cmos Jumper | Yes |
Expansion slots
| Pci Express X16 (Gen 3.X) Slots | 1 |
|---|---|
| Pci Express X1 (Gen 2.X) Slots | 2 |
Features
| Audio Output Channels | 7.1 channels |
|---|---|
| Component For | PC |
| Motherboard Chipset | Intel® H110 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | micro ATX |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Graphics
| Directx Version | 12.0 |
|---|---|
| Maximum Resolution | 4096 x 2160 pixels |
Internal I/O
| Atx Power Connector (24-Pin) | Yes |
|---|---|
| Chassis Intrusion Connector | Yes |
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Number Of Parallel Ata Connectors | 1 |
| Number Of Sata Connectors | 4 |
| Number Of Sata Iii Connectors | 4 |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
Memory
| Maximum Internal Memory | 32 GB |
|---|---|
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 2 |
| Supported Memory Clock Speeds | 2133 MHz |
| Supported Memory Module Capacities | 16GB |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Ethernet Interface Type | Fast Ethernet, Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
| Wi-Fi | No |
Packaging content
| Bundled Software | Drivers LIVE UPDATE 6 FAST BOOT SUPER CHARGER M-CLOUD Intel® Small Business Basics Norton™ Security Google Chrome™,Google Toolbar, Google Drive ECO Center Pro ECO Meter |
|---|---|
| Drivers Included | Yes |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Pentium® |
|---|---|
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1151 (Socket H4) |
Rear panel I/O ports
| Dvi-D Ports Quantity | 1 |
|---|---|
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Headphone Outputs | 2 |
| Microphone In | Yes |
| Ps/2 Ports Quantity | 2 |
| Serial Ports Quantity | 1 |
| Usb 2.0 Ports Quantity | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 2 |
| Vga (D-Sub) Ports Quantity | 1 |
Storage controllers
| Supported Storage Drive Interfaces | SATA III |
|---|
Weight & dimensions
| Depth | 243 mm |
|---|---|
| Width | 206 mm |
