Home / Motherboards / MSI B560M PRO-E motherboard Intel B560 LGA 1200 (Socket H5) micro ATX
MSI · MPN B560M PRO-E · MSI B560M PRO-E motherboard Intel B560 LGA 1200 (Socket H5) micro ATX

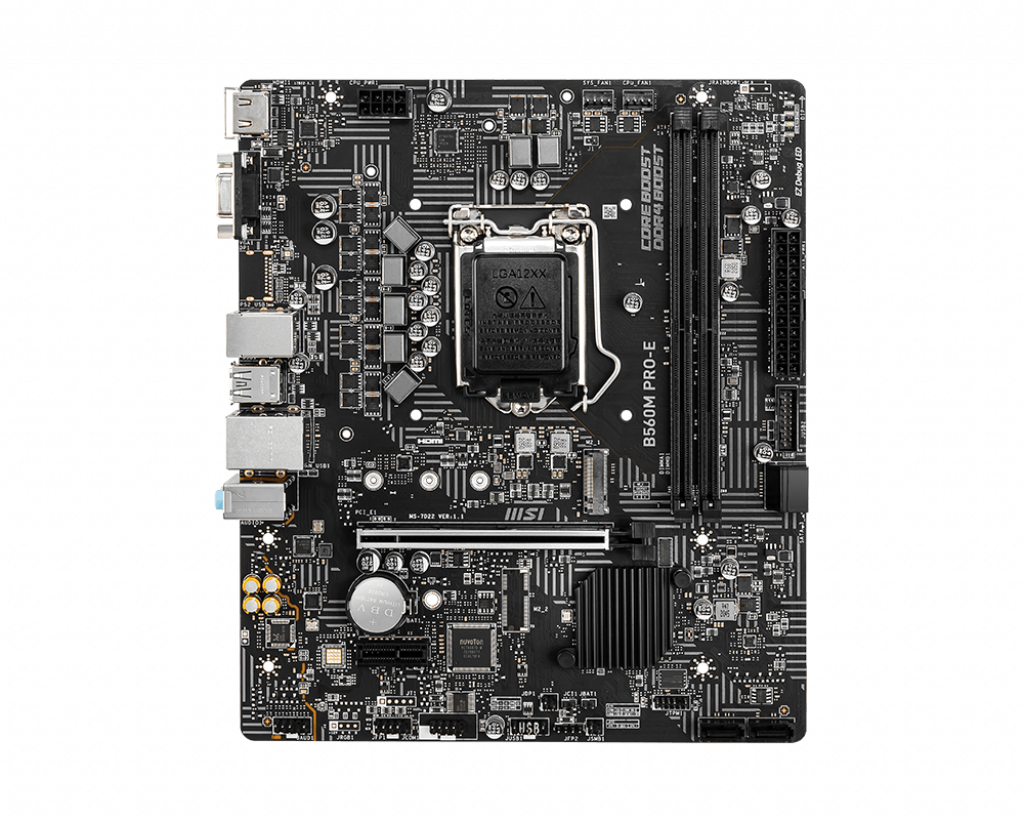

MSI B560M PRO-E motherboard Intel B560 LGA 1200 (Socket H5) micro ATX
- Motherboard Chipset
- Intel B560
- Processor Socket
- LGA 1200 (Socket H5)
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 64 GB
- Wi-Fi
- No
- Ethernet Lan
- Yes
Specifications
Expansion slots
| Number Of M.2 (M) Slots | 1 |
|---|---|
| Pci Express X16 Slots | 1 |
| Pci Express X1 (Gen 3.X) Slots | 2 |
Features
| Audio Chip | Realtek ALC897 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | Intel B560 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | micro ATX |
| Number Of Mounting Holes | 6 |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 10 x64 |
Graphics
| Directx Version | 12.0 |
|---|---|
| Maximum Resolution | 4096 x 2304 pixels |
| Number Of Displays Supported | 3 |
| On-Board Graphics Card | Yes |
| Parallel Processing Technology Support | Not supported |
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Chassis Intrusion Connector | Yes |
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Number Of Eatx Power Connectors | 1 |
| Number Of Sata Iii Connectors | 6 |
| Serial Port Headers | 1 |
| Total Number Of Sata Connectors | 6 |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 64 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 2 |
| Supported Memory Clock Speeds | 2133,2666,2933,3200 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
| Lan Controller | Realtek RTL8125B |
| Wi-Fi | No |
Packaging content
| Cables Included | SATA |
|---|---|
| Drivers Included | Yes |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
|---|---|
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1200 (Socket H5) |
Rear panel I/O ports
| Ethernet Lan (Rj-45) Ports | 1 |
|---|---|
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 2.0b |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| Ps/2 Ports Quantity | 1 |
| Usb 2.0 Ports Quantity | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 4 |
| Usb Connector Type | USB Type-A |
| Vga (D-Sub) Ports Quantity | 1 |
Storage controllers
| Number Of Storage Drives Supported | 7 |
|---|---|
| Supported Storage Drive Interfaces | M.2, SATA |
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 236 mm |
|---|---|
| Width | 202 mm |
