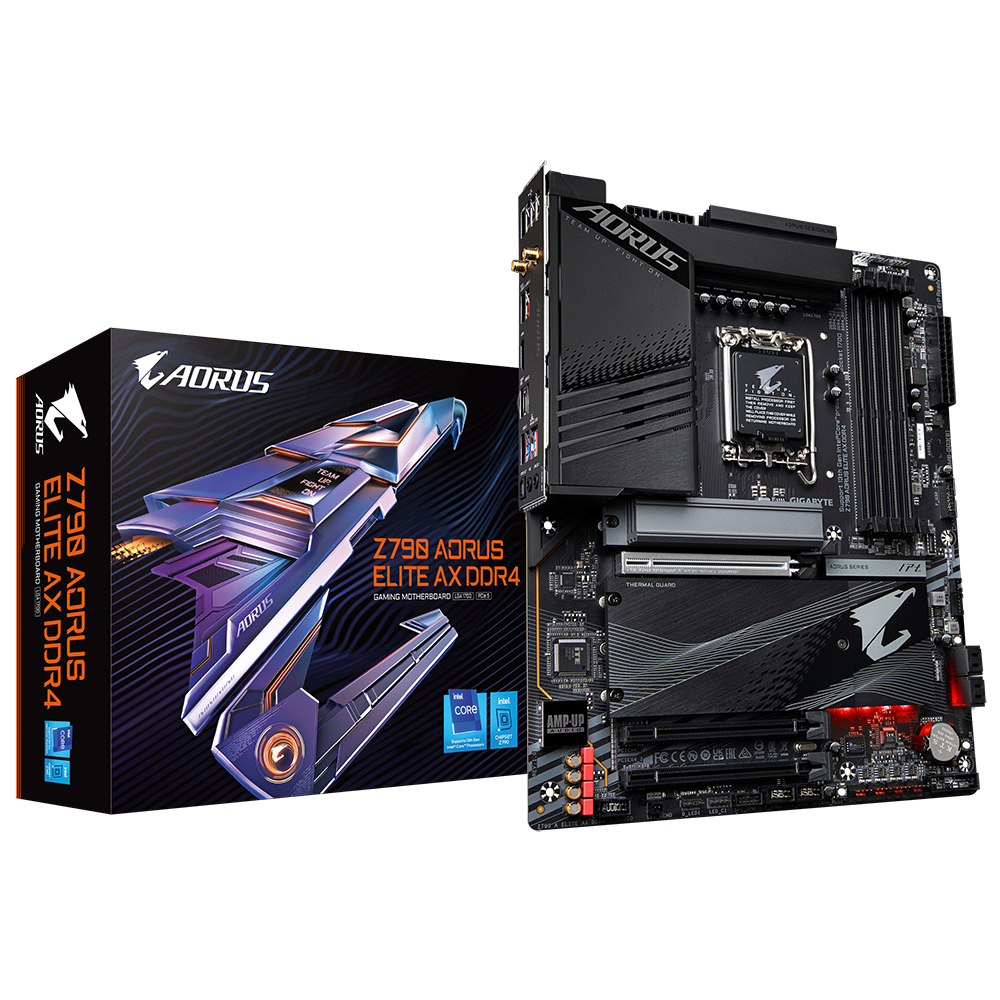

GIGABYTE · MPN Z790 AORUS ELITE AX DDR4 · GIGABYTE Z790 AORUS ELITE AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 16+1+2 Phases Digital VRM, up to 5333MHz DDR4 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2
GIGABYTE Z790 AORUS ELITE AX DDR4 Motherboard - Supports Intel Core 14th Gen CPUs, 16+1+2 Phases Digital VRM, up to 5333MHz DDR4 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2
- Motherboard Chipset
- Intel Z790
- Processor Socket
- LGA 1700
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 128 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
Battery
| Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|---|
| Battery Type | CR2032 |
| Battery Weight | 3 g |
| Lithium Weight Per Battery | 0.07 g |
| Number Of Battery Cells | 1 |
BIOS
| Acpi Version | 5.0 |
|---|---|
| Bios Memory Size | 256 Mbit |
| Bios Type | UEFI AMI |
| Clear Cmos Button | Yes |
| Clear Cmos Jumper | Yes |
| Desktop Management Interface (Dmi) Version | 2.7 |
| System Management Bios (Smbios) Version | 2.7 |
Expansion slots
| Number Of M.2 (M) Slots | 4 |
|---|---|
| Pci Express X16 Slots | 3 |
Features
| Audio Output Channels | 7.1 channels |
|---|---|
| Component For | PC |
| Motherboard Chipset | Intel Z790 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | ATX |
| Pc Health Monitoring | Fan, Temperature, Voltage, Water cooling |
| Product Colour | Black |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 x64 |
Graphics
| Directx Version | 12.0 |
|---|---|
| Hdcp | Yes |
| Maximum Resolution | 4096 x 2304 pixels |
| On-Board Graphics Card | No |
| Parallel Processing Technology Support | Not supported |
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Sata Iii Connectors | 4 |
| Rgb Led Pin Header | Yes |
| Thunderbolt Headers | 2 |
| Total Number Of Sata Connectors | 4 |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Connectors | 1 |
Logistics data
| Country Of Origin | China |
|---|---|
| Products Per Shipping (Inner) Case | 1 pc(s) |
Memory
| Ecc сOmpatibility | ECC & Non-ECC |
|---|---|
| Maximum Internal Memory | 128 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speed (Max) | 5333 MHz |
| Supported Memory Clock Speeds | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Supported Memory Module Capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 5.3 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan | Yes |
| Top Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wlan Controller Model | Intel Wi-Fi 6E AX211 |
Packaging content
| Batteries Included | Yes |
|---|---|
| Bundled Software | Norton Internet Security |
| Cables Included | SATA |
Packaging data
| Package Depth | 270 mm |
|---|---|
| Package Height | 80 mm |
| Package Weight | 2.32 kg |
| Package Width | 335 mm |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
|---|---|
| Maximum Internal Memory Supported By Processor | 128 GB |
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1700 |
| Supported Processor Sockets | LGA 1700 |
Rear panel I/O ports
| Displayports Quantity | 1 |
|---|---|
| Displayport Version | 1.2 |
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 2.0 |
| Headphone Outputs | 2 |
| Microphone In | Yes |
| S/Pdif Out Port | Yes |
| Usb 2.0 Ports Quantity | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 3 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 2 |
| Usb 3.2 Gen 2x2 Type-C Ports Quantity | 1 |
| Usb Connector Type | USB Type-A, USB Type-C |
| Wifi-Ap Antenna Jack | 2 |
Storage controllers
| Number Of Hdds Supported | 4 |
|---|---|
| Number Of Storage Drives Supported | 8 |
| Raid Levels | 0, 1, 5, 10 |
| Raid Support | Yes |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Supported Storage Drive Types | HDD & SSD |
Technical details
| Warranty Period | 3 year(s) |
|---|
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Height | 35 mm |
| Width | 305 mm |
