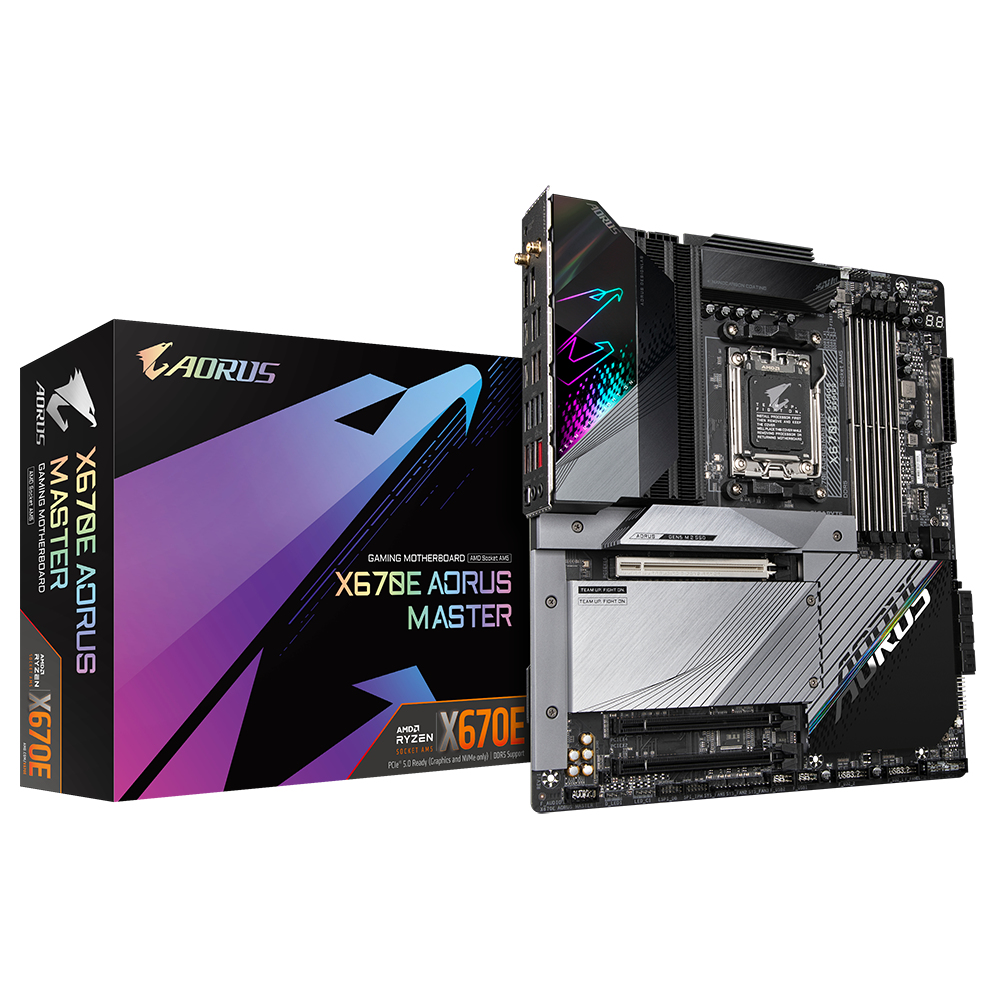

Home / Motherboards / GIGABYTE X670E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2
GIGABYTE · MPN X670E AORUS MASTER · GIGABYTE X670E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2
GIGABYTE X670E AORUS MASTER Motherboard - Supports AMD Ryzen 9000 Series CPUs, 16+2+2 Phases Digital VRM, up to 8000MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2x2
- Motherboard Chipset
- AMD X670
- Processor Socket
- Socket AM5
- Supported Memory Types
- DDR5-SDRAM
- Maximum Internal Memory
- 192 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
Battery
| Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|---|
| Battery Type | CR2032 |
| Battery Weight | 3 g |
| Lithium Weight Per Battery | 0.07 g |
| Number Of Battery Cells | 1 |
BIOS
| Acpi Version | 5.0 |
|---|---|
| Bios Memory Size | 256 Mbit |
| Bios Type | UEFI AMI |
| Clear Cmos Jumper | Yes |
| Desktop Management Interface (Dmi) Version | 2.7 |
| System Management Bios (Smbios) Version | 2.7 |
Expansion slots
| Number Of M.2 (M) Slots | 4 |
|---|---|
| Pci Express X1 (Gen 4.X) Slots | 1 |
| Pci Express X4 (Gen 2.X) Slots | 1 |
Features
| Audio Output Channels | 7.1 channels |
|---|---|
| Component For | PC |
| Motherboard Chipset | AMD X670 |
| Motherboard Chipset Family | AMD |
| Motherboard Form Factor | ATX |
| Product Colour | Black |
| Windows Operating Systems Supported | Windows 10 Home x64, Windows 11 x64 |
Graphics
| Directx Version | 12.0 |
|---|---|
| Hdcp | Yes |
| Parallel Processing Technology Support | Not supported |
Internal I/O
| Audio Connector | Yes |
|---|---|
| Chassis Intrusion Connector | Yes |
| Cpu Fan Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Sata Iii Connectors | 6 |
| Rgb Led Pin Header | Yes |
| Total Number Of Sata Connectors | 6 |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
| Usb 3.2 Gen 2x2 Connectors | 1 |
Logistics data
| Country Of Origin | Taiwan |
|---|---|
| Products Per Shipping (Inner) Case | 1 pc(s) |
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 192 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speed (Max) | 8000 MHz |
| Supported Memory Clock Speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz |
| Supported Memory Types | DDR5-SDRAM |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 5.3 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan | Yes |
| Top Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wlan Controller Model | Intel Wi-Fi 6E AX210 |
Packaging content
| Batteries Included | Yes |
|---|---|
| Cables Included | SATA |
| Drivers Included | Yes |
Packaging data
| Package Depth | 335 mm |
|---|---|
| Package Height | 430 mm |
| Package Weight | 3.33 kg |
| Package Width | 400 mm |
Processor
| Compatible Processor Series | AMD Ryzen™ 7 |
|---|---|
| Maximum Internal Memory Supported By Processor | 192 GB |
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM5 |
| Supported Processor Sockets | Socket AM5 |
Rear panel I/O ports
| Ethernet Lan (Rj-45) Ports | 1 |
|---|---|
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 2.0 |
| S/Pdif Out Port | Yes |
| Usb 2.0 Ports Quantity | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 4 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 4 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity | 1 |
| Usb 3.2 Gen 2x2 Type-C Ports Quantity | 1 |
Storage controllers
| Number Of Hdds Supported | 4 |
|---|---|
| Number Of Storage Drives Supported | 10 |
| Raid Levels | 0, 1, 10 |
| Supported Storage Drive Interfaces | M.2, SATA II |
| Supported Storage Drive Types | HDD & SSD |
Technical details
| Warranty Period | 3 year(s) |
|---|
Weight & dimensions
| Depth | 269 mm |
|---|---|
| Height | 35 mm |
| Width | 305 mm |
