Home / Motherboards / GIGABYTE X299 UD4 Pro Intel® X299 LGA 2066 (Socket R4) ATX
GIGABYTE · MPN X299 UD4 PRO · GIGABYTE X299 UD4 Pro Intel® X299 LGA 2066 (Socket R4) ATX

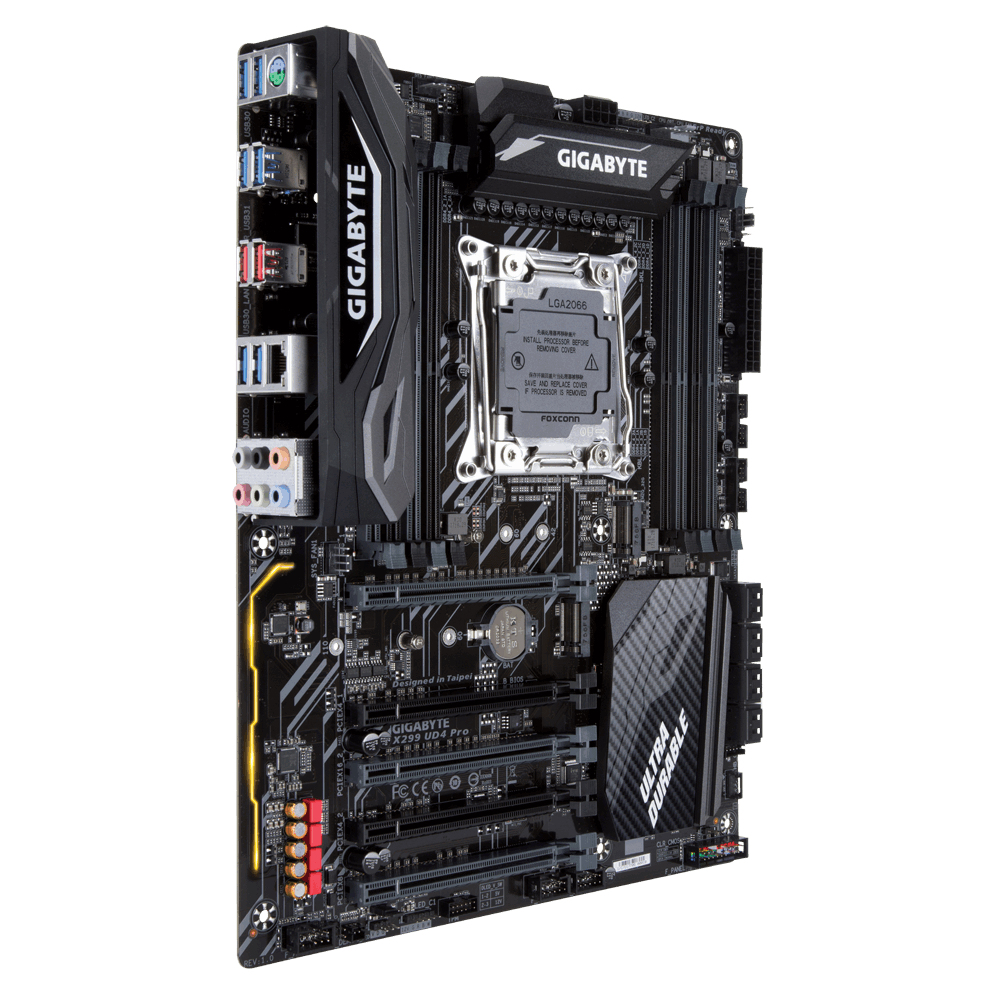

GIGABYTE X299 UD4 Pro Intel® X299 LGA 2066 (Socket R4) ATX
- Motherboard Chipset
- Intel® X299
- Processor Socket
- LGA 2066 (Socket R4)
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 128 GB
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 5.0 |
|---|---|
| Bios Memory Size | 128 Mbit |
| Bios Type | UEFI AMI |
| Clear Cmos Jumper | Yes |
| Desktop Management Interface (Dmi) Version | 2.7 |
| Plug And Play | Yes |
| System Management Bios (Smbios) Version | 2.7 |
Expansion slots
| Number Of M.2 (M) Slots | 2 |
|---|---|
| Pci Express X16 Slots | 5 |
Features
| Audio Chip | Realtek ALC1220 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | Intel® X299 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | ATX |
| Pc Health Monitoring | Fan, Temperature, Voltage |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64 |
Graphics
| Parallel Processing Technology Support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI |
|---|
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 2 |
| Number Of Sata Iii Connectors | 8 |
| S/Pdif Out Connector | Yes |
| Thunderbolt Headers | 1 |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 128 GB |
| Memory Channels | Quad-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 8 |
| Supported Memory Clock Speeds | 2133,2400,2667 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Ethernet Interface Type | Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
Other features
| Registered | Yes |
|---|
Packaging content
| Bundled Software | Norton Internet Security, cFosSpeed |
|---|
Processor
| Compatible Processor Series | Intel® Core™ X-series |
|---|---|
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | Intel |
| Processor Socket | LGA 2066 (Socket R4) |
Processor special features
| Intel Extreme Memory Profile (Xmp) | Yes |
|---|
Rear panel I/O ports
| Ethernet Lan (Rj-45) Ports | 1 |
|---|---|
| Ps/2 Ports Quantity | 1 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 6 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 2 |
Storage controllers
| Raid Levels | 0, 1, 5, 10 |
|---|
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
