Home / Motherboards / GIGABYTE MC62-G40 AMD WRX80 Socket sWRX8 SSI CEB
GIGABYTE · MPN 9MC62G40NR-00 · GIGABYTE MC62-G40 AMD WRX80 Socket sWRX8 SSI CEB

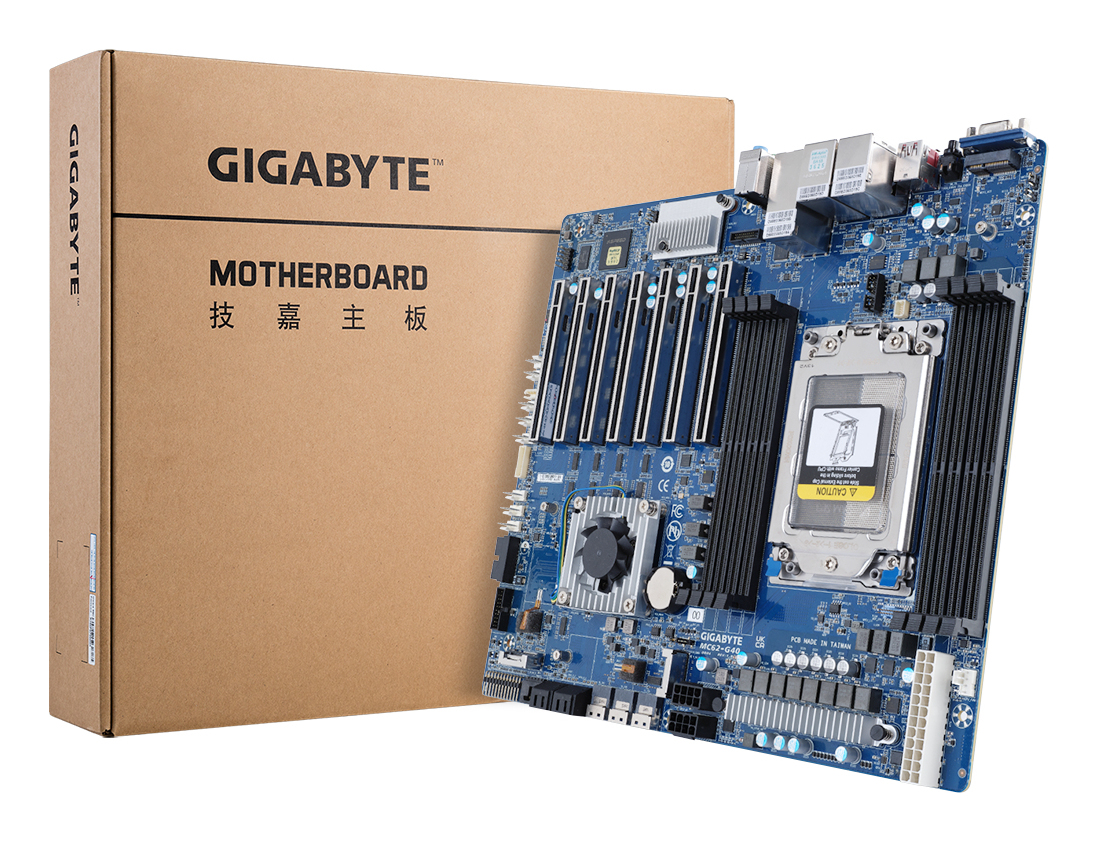

GIGABYTE MC62-G40 AMD WRX80 Socket sWRX8 SSI CEB
- Motherboard Chipset
- AMD WRX80
- Processor Socket
- Socket sWRX8
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 2 TB
- Wi-Fi
- No
- Ethernet Lan
- Yes
Specifications
Expansion slots
| Number Of M.2 (M) Slots | 2 |
|---|---|
| Pci Express X16 (Gen 4.X) Slots | 7 |
Features
| Audio Chip | Realtek ALC4080 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | Server |
| Linux Operating Systems Supported | Ubuntu 20.04 LTS |
| Motherboard Chipset | AMD WRX80 |
| Motherboard Chipset Family | AMD |
| Motherboard Form Factor | SSI CEB |
| Windows Operating Systems Supported | Windows 10 x64 |
Graphics
| Maximum Resolution | 1920 x 1200 pixels |
|---|---|
| On-Board Graphics Card Model | Aspeed AST2600 |
| Parallel Processing Technology Support | Not supported |
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Cpu Fan Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 8 |
| Number Of Com Connectors | 1 |
| Number Of Sata Iii Connectors | 4 |
| Tpm Connector | Yes |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | ECC & Non-ECC |
|---|---|
| Maximum Internal Memory | 2 TB |
| Memory Channels | Octa-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 8 |
| Supported Memory Clock Speeds | 2133,2400,2666,2933,3200 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Ethernet Interface Type | 10 Gigabit Ethernet, Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
| Lan Controller | Intel I210, Intel® X550-AT2 |
| Wi-Fi | No |
Operational conditions
| Operating Relative Humidity (H-H) | 8 - 80% |
|---|---|
| Operating Temperature (T-T) | 10 - 40 °C |
| Storage Relative Humidity (H-H) | 20 - 95% |
| Storage Temperature (T-T) | -40 - 60 °C |
Packaging content
| Cables Included | SATA |
|---|
Processor
| Compatible Processor Series | AMD Ryzen Threadripper PRO 3000 WX-Series |
|---|---|
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | AMD |
| Processor Socket | Socket sWRX8 |
Rear panel I/O ports
| Ethernet Lan (Rj-45) Ports | 3 |
|---|---|
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 4 |
| Vga (D-Sub) Ports Quantity | 1 |
Storage controllers
| Raid Levels | 0, 1, 5, 10 |
|---|---|
| Raid Support | Yes |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 267 mm |
|---|---|
| Width | 305 mm |
