Home / Motherboards / GIGABYTE H510M H motherboard Intel H510 Express LGA 1200 (Socket H5) micro ATX
GIGABYTE · MPN H510M H · GIGABYTE H510M H motherboard Intel H510 Express LGA 1200 (Socket H5) micro ATX

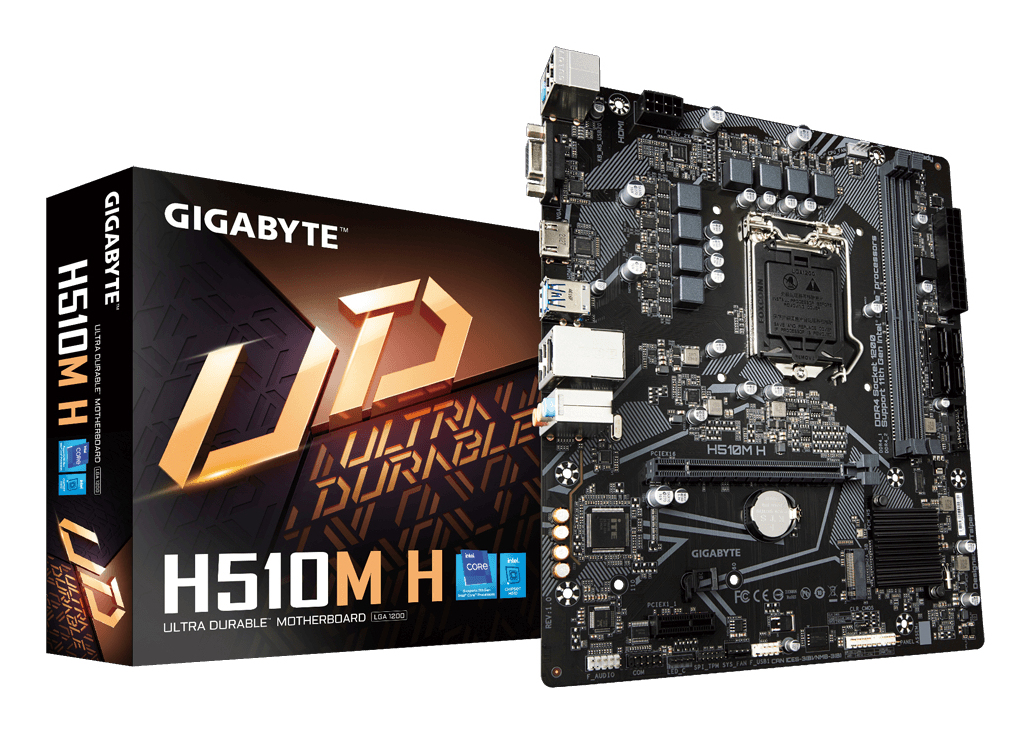

GIGABYTE H510M H motherboard Intel H510 Express LGA 1200 (Socket H5) micro ATX
- Motherboard Chipset
- Intel H510 Express
- Processor Socket
- LGA 1200 (Socket H5)
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 64 GB
- Wi-Fi
- No
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 5.0 |
|---|---|
| Bios Memory Size | 256 Mbit |
| Bios Type | UEFI AMI |
| Clear Cmos Jumper | Yes |
| Desktop Management Interface (Dmi) Version | 2.7 |
| System Management Bios (Smbios) Version | 2.7 |
Expansion slots
| Number Of M.2 (M) Slots | 1 |
|---|---|
| Pci Express X16 Slots | 1 |
| Pci Express X1 Slots | 1 |
Features
| Audio Output Channels | 7.1 channels |
|---|---|
| Component For | PC |
| Motherboard Chipset | Intel H510 Express |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | micro ATX |
| Pc Health Monitoring | Fan, Temperature, Voltage |
| Windows Operating Systems Supported | Windows 10 x64 |
Graphics
| Hdcp | Yes |
|---|---|
| Maximum Resolution | 4096 x 2160 pixels |
| Parallel Processing Technology Support | Not supported |
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 1 |
| Number Of Sata Iii Connectors | 4 |
| Rgb Led Pin Header | Yes |
| Serial Port Headers | 1 |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 1 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | ECC & Non-ECC |
|---|---|
| Maximum Internal Memory | 64 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 2 |
| Supported Memory Clock Speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Ethernet Interface Type | Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
| Wi-Fi | No |
Other features
| Weight | 385 g |
|---|
Packaging content
| Bundled Software | Norton Internet Security, Realtek 8118 Gaming LAN Bandwidth Control Utility |
|---|
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
|---|---|
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1200 (Socket H5) |
| Supported Processor Sockets | LGA 1200 (Socket H5) |
Rear panel I/O ports
| Ethernet Lan (Rj-45) Ports | 1 |
|---|---|
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 1.4 |
| Headphone Outputs | 3 |
| Microphone In | Yes |
| Ps/2 Ports Quantity | 1 |
| Usb 2.0 Ports Quantity | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 2 |
| Usb Connector Type | USB Type-A |
| Vga (D-Sub) Ports Quantity | 1 |
Storage controllers
| Number Of Storage Drives Supported | 5 |
|---|---|
| Supported Storage Drive Interfaces | M.2, PCI Express 3.0, SATA III |
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 210 mm |
|---|---|
| Height | 52 mm |
| Width | 244 mm |
