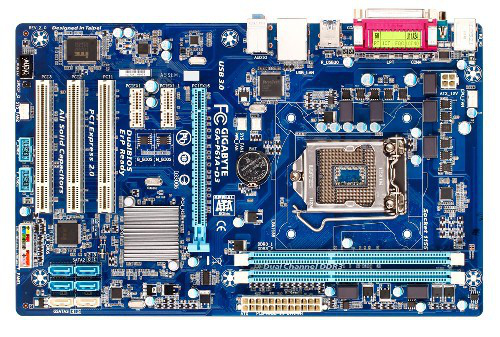

Home / Motherboards / GIGABYTE GA-P61A-D3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX
GIGABYTE · MPN GA-P61A-D3 · GIGABYTE GA-P61A-D3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX
GIGABYTE GA-P61A-D3 motherboard Intel® H61 LGA 1155 (Socket H2) ATX
- Motherboard Chipset
- Intel® H61
- Processor Socket
- LGA 1155 (Socket H2)
- Supported Memory Types
- DDR3-SDRAM
- Maximum Internal Memory
- 16 GB
Specifications
BIOS
| Acpi Version | 2.0a |
|---|---|
| Bios Memory Size | 64 Mbit |
| Bios Type | EFI AMI |
| Clear Cmos Jumper | Yes |
Expansion slots
| Pci Express X16 Slots | 1 |
|---|---|
| Pci Express X1 Slots | 2 |
| Pci Slots | 3 |
Features
| Audio Chip | Realtek ALC887 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | Intel® H61 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | ATX |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Graphics
| Parallel Processing Technology Support | Not supported |
|---|
Internal I/O
| Atx Power Connector (24-Pin) | Yes |
|---|---|
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Number Of Sata Ii Connectors | 4 |
| Number Of Sata Iii Connectors | 2 |
| Power Fan Connector | Yes |
| S/Pdif Out Connector | Yes |
| Usb 2.0 Connectors | 2 |
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 16 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Memory Voltage | 1.5 V |
| Number Of Memory Slots | 2 |
| Supported Memory Clock Speeds | 800,1066,1333 MHz |
| Supported Memory Types | DDR3-SDRAM |
Network
| Ethernet Interface Type | Fast Ethernet, Gigabit Ethernet |
|---|---|
| Lan Controller | Atheros AR8151 |
| Networking Features | Gigabit Ethernet |
Other features
| Controller Interface Type | iTE IT8728 |
|---|---|
| Quick Installation Guide | Yes |
Packaging content
| Bundled Software | Norton Internet Security OEM |
|---|---|
| Drivers Included | Yes |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Pentium® |
|---|---|
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1155 (Socket H2) |
Rear panel I/O ports
| Com Ports Quantity | 1 |
|---|---|
| Ethernet Lan (Rj-45) Ports | 1 |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| Ps/2 Ports Quantity | 2 |
| S/Pdif Out Port | Yes |
| Usb 2.0 Ports Quantity | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 2 |
Storage controllers
| Raid Levels | 0, 1 |
|---|---|
| Supported Storage Drive Interfaces | SATA II, SATA III |
Weight & dimensions
| Depth | 190 mm |
|---|---|
| Width | 305 mm |
