Home / Motherboards / GIGABYTE GA-B85M-D3H motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX
GIGABYTE · MPN GA-B85M-D3H · GIGABYTE GA-B85M-D3H motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX

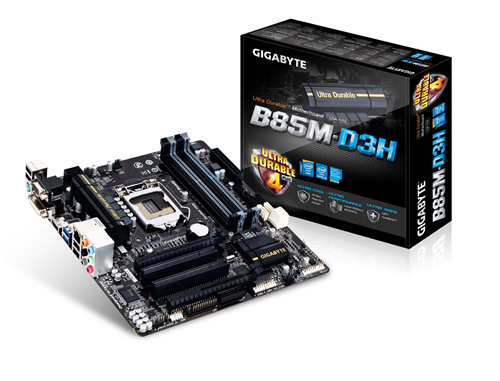

GIGABYTE GA-B85M-D3H motherboard Intel® B85 LGA 1150 (Socket H3) micro ATX
- Motherboard Chipset
- Intel® B85
- Processor Socket
- LGA 1150 (Socket H3)
- Supported Memory Types
- DDR3-SDRAM
- Maximum Internal Memory
- 32 GB
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 2.0a |
|---|---|
| Bios Type | UEFI |
| Clear Cmos Jumper | Yes |
Expansion slots
| Pci Express X16 (Gen 2.X) Slots | 1 |
|---|---|
| Pci Express X16 (Gen 3.X) Slots | 1 |
| Pci Express X16 Slots | 1 |
| Pci Slots | 2 |
Features
| Audio Chip | Realtek ALC892 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | Intel® B85 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | micro ATX |
| Power Source Type | ATX |
Graphics
| Discrete Graphics Support | Yes |
|---|---|
| Graphics Card | HD Graphics |
| Maximum Resolution | 4096 x 2160 pixels |
| On-Board Graphics Card | Yes |
Internal I/O
| Atx Power Connector (24-Pin) | Yes |
|---|---|
| Cd/Aux Audio In | No |
| Chassis Intrusion Connector | Yes |
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Number Of Chassis Fan Connectors | 3 |
| Number Of Com Connectors | No |
| Number Of Sata Connectors | 6 |
| Number Of Sata Ii Connectors | 2 |
| Number Of Sata Iii Connectors | 4 |
| Parallel Connector | No |
| Power Fan Connector | No |
| Serial Port Headers | 1 |
| S/Pdif Out Connector | Yes |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 32 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Memory Voltage | 1.5 V |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speeds | 1333,1600 MHz |
| Supported Memory Types | DDR3-SDRAM |
Network
| Ethernet Lan | Yes |
|---|
Other features
| Audio Modem Rise (Amr) Slot | No |
|---|---|
| Cf Card Connector | No |
| Cnr Slot | No |
| Dual Power System (Dps) Slot | No |
| Ez Plug Connector | No |
| Floppy Disk Drive Connector | No |
| Game/Midi Connector | No |
| Ipmi 2.0 Slot | No |
| Parallel Port Via Internal Header | Yes |
| Quick Installation Guide | Yes |
| S/Pdif In Connector | No |
| S/Pdif In Port | No |
Packaging content
| Bundled Software | Intel Rapid Start Technology Intel Smart Connect Technology Intel Small Business Advantage Norton Internet Security |
|---|---|
| Drivers Included | Yes |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Pentium® |
|---|---|
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1150 (Socket H3) |
Processor special features
| Intel® High Definition Audio (Intel® Hd Audio) | Yes |
|---|---|
| Processor With Intel Graphics Technology Required | Yes |
Rear panel I/O ports
| Dvi-D Ports Quantity | 1 |
|---|---|
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 1.4a |
| Microphone In | Yes |
| Ps/2 Ports Quantity | 1 |
| Usb 2.0 Ports Quantity | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 2 |
| Vga (D-Sub) Ports Quantity | 1 |
Storage controllers
| Supported Storage Drive Interfaces | SATA, SATA II, SATA III |
|---|
Weight & dimensions
| Depth | 225 mm |
|---|---|
| Width | 244 mm |
