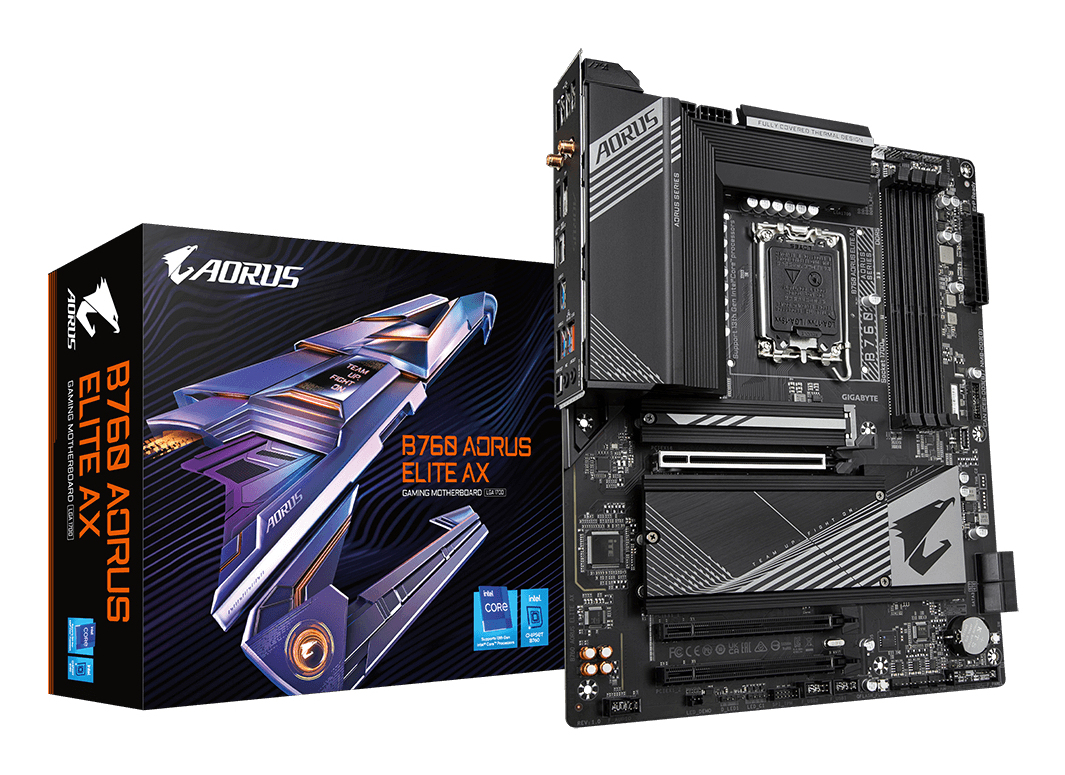

Home / Motherboards / GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases VRM, up to 7800MHz DDR5 (OC), 1xPCIe 4.0 + 2xPCIe 3.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE · MPN B760 AORUS ELITE AX · GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases VRM, up to 7800MHz DDR5 (OC), 1xPCIe 4.0 + 2xPCIe 3.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
GIGABYTE B760 AORUS ELITE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+1 Phases VRM, up to 7800MHz DDR5 (OC), 1xPCIe 4.0 + 2xPCIe 3.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
- Motherboard Chipset
- Intel B760
- Processor Socket
- LGA 1700
- Supported Memory Types
- DDR5-SDRAM
- Maximum Internal Memory
- 192 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
Battery
| Battery Technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|---|
| Battery Type | CR2032 |
| Battery Weight | 3 g |
| Lithium Weight Per Battery | 0.07 g |
| Number Of Battery Cells | 1 |
BIOS
| Acpi Version | 5.0 |
|---|---|
| Bios Memory Size | 256 Mbit |
| Bios Type | UEFI AMI |
| Clear Cmos Jumper | Yes |
| Desktop Management Interface (Dmi) Version | 2.7 |
| System Management Bios (Smbios) Version | 2.7 |
Expansion slots
| Number Of M.2 (M) Slots | 3 |
|---|---|
| Pci Express X16 (Gen 3.X) Slots | 2 |
| Pci Express X16 (Gen 4.X) Slots | 1 |
Features
| Audio Chip | Realtek ALC897 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | Intel B760 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | ATX |
| Pc Health Monitoring | Fan, Temperature, Voltage, Water cooling |
| Power Source Type | ATX |
| Product Colour | Black |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 x64 |
Graphics
| Discrete Graphics Support | Yes |
|---|---|
| Hdcp | Yes |
| Maximum Resolution | 4096 x 2304 pixels |
| Parallel Processing Technology Support | Not supported |
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 4 |
| Number Of Eatx Power Connectors | 2 |
| Number Of Sata Iii Connectors | 4 |
| Peripheral (Molex) Power Connectors (4-Pin) | 1 |
| Rgb Led Pin Header | Yes |
| S/Pdif Out Connector | Yes |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Connectors | 1 |
Logistics data
| Country Of Origin | China |
|---|---|
| Products Per Shipping (Inner) Case | 1 pc(s) |
Memory
| Ecc сOmpatibility | ECC & Non-ECC |
|---|---|
| Maximum Internal Memory | 192 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speed (Max) | 7600 MHz |
| Supported Memory Clock Speeds | 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz |
| Supported Memory Types | DDR5-SDRAM |
| Unbuffered Memory | Yes |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 5.3 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan | Yes |
| Lan Controller | Realtek RTL8125 |
| Top Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wlan Controller Model | Realtek RTL8852CE |
Packaging content
| Antenna Included | Yes |
|---|---|
| Batteries Included | Yes |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Cables Included | SATA |
Packaging data
| Package Depth | 270 mm |
|---|---|
| Package Height | 80 mm |
| Package Weight | 2.16 kg |
| Package Width | 335 mm |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
|---|---|
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1700 |
| Supported Processor Sockets | LGA 1700 |
Rear panel I/O ports
| Digital Audio Optical Out | 1 |
|---|---|
| Displayports Quantity | 1 |
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| S/Pdif Out Port | Yes |
| Usb 2.0 Ports Quantity | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 4 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 1 |
| Usb 3.2 Gen 2x2 Type-C Ports Quantity | 1 |
| Usb Connector Type | USB Type-A, USB Type-C |
| Wifi-Ap Antenna Jack | 2 |
Storage controllers
| Number Of Hdds Supported | 4 |
|---|---|
| Number Of Storage Drives Supported | 7 |
| Raid Levels | 0, 1, 5, 10 |
| Raid Support | Yes |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Supported Storage Drive Types | HDD & SSD |
Technical details
| Warranty Period | 3 year(s) |
|---|
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Height | 35 mm |
| Width | 305 mm |
