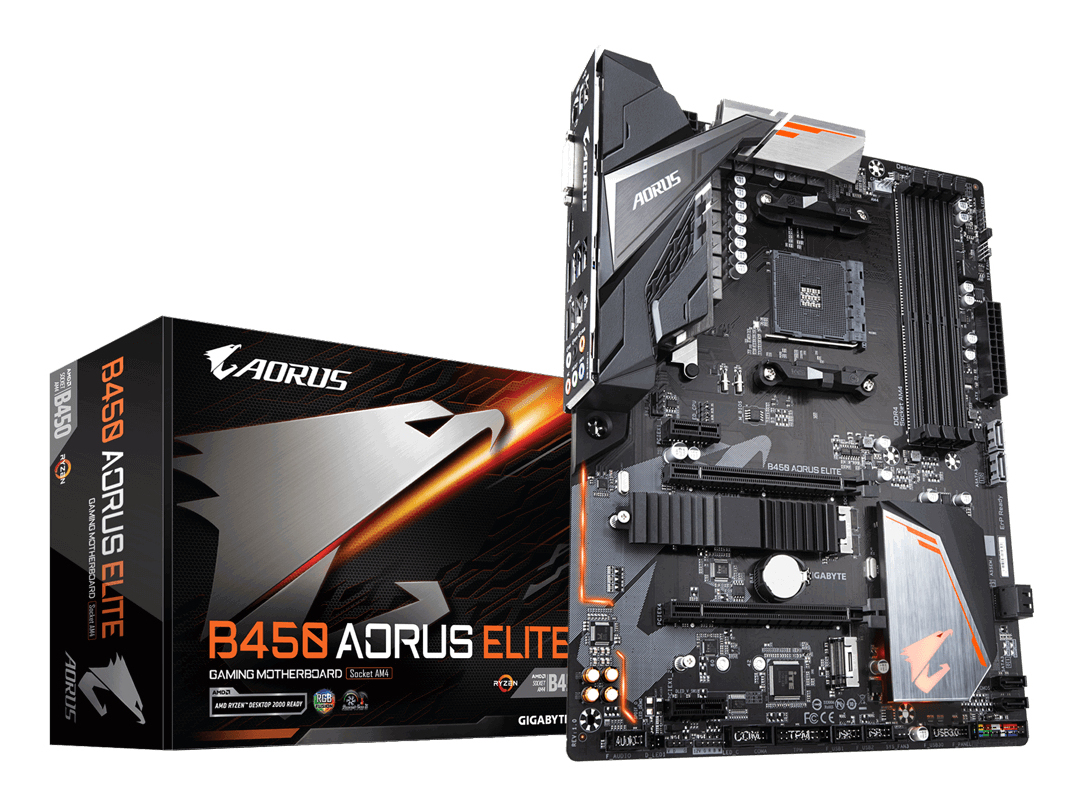

GIGABYTE B450 AORUS ELITE motherboard AMD B450 Socket AM4 ATX
- Motherboard Chipset
- AMD B450
- Processor Socket
- Socket AM4
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 64 GB
- Wi-Fi
- No
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 5.0 |
|---|---|
| Bios Memory Size | 128 Mbit |
| Bios Type | UEFI AMI |
| Clear Cmos Jumper | Yes |
| Desktop Management Interface (Dmi) Version | 2.7 |
| Plug And Play | Yes |
| System Management Bios (Smbios) Version | 2.7 |
Expansion slots
| Number Of M.2 (M) Slots | 2 |
|---|---|
| Pci Express X16 Slots | 2 |
| Pci Express X1 Slots | 2 |
Features
| Audio Chip | Realtek ALC892 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Certification | CE, FCC |
| Component For | PC |
| Motherboard Chipset | AMD B450 |
| Motherboard Chipset Family | AMD |
| Motherboard Form Factor | ATX |
| Windows Operating Systems Supported | Windows 10, Windows 7 |
Graphics
| Hdcp | Yes |
|---|---|
| Maximum Resolution | 4096 x 2160 pixels |
| Parallel Processing Technology Support | CrossFire |
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 3 |
| Number Of Sata Iii Connectors | 6 |
| Rgb Led Pin Header | Yes |
| Serial Port Headers | 1 |
| S/Pdif Out Connector | Yes |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | ECC & Non-ECC |
|---|---|
| Maximum Internal Memory | 64 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speed (Max) | 2933 MHz |
| Supported Memory Clock Speeds | 2133,2400,2667,2933 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Ethernet Interface Type | Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
| Wi-Fi | No |
Other features
| Weight | 910 g |
|---|
Processor
| Compatible Processor Series | AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
|---|---|
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM4 |
Processor special features
| Intel Extreme Memory Profile (Xmp) | Yes |
|---|---|
| Intel® High Definition Audio (Intel® Hd Audio) | Yes |
Rear panel I/O ports
| Dvi-D Ports Quantity | 1 |
|---|---|
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Headphone Outputs | 6 |
| Ps/2 Ports Quantity | 1 |
| Usb 2.0 Ports Quantity | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 4 |
Storage controllers
| Raid Levels | 0, 1, 10 |
|---|---|
| Supported Storage Drive Interfaces | M.2, SATA |
| Supported Storage Drive Types | SSD |
Weight & dimensions
| Depth | 235 mm |
|---|---|
| Height | 80 mm |
| Width | 305 mm |
