Home / Motherboards / Fujitsu D3400-B motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX
Fujitsu · MPN D3400-B · Fujitsu D3400-B motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX

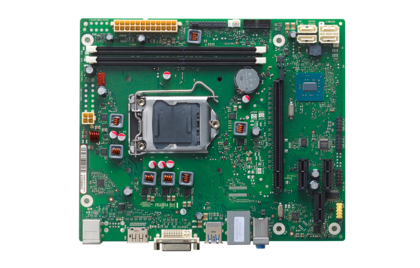

Fujitsu D3400-B motherboard Intel® H110 LGA 1151 (Socket H4) micro ATX
- Motherboard Chipset
- Intel® H110
- Processor Socket
- LGA 1151 (Socket H4)
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 32 GB
- Ethernet Lan
- Yes
Specifications
BIOS
| Bios Type | UEFI AMI |
|---|
Expansion slots
| Pci Express X16 (Gen 3.X) Slots | 1 |
|---|---|
| Pci Express X1 (Gen 2.X) Slots | 2 |
Features
| Audio Chip | Realtek ALC671 |
|---|---|
| Audio Output Channels | 5.1 channels |
| Component For | PC |
| Motherboard Chipset | Intel® H110 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | micro ATX |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Yes |
Graphics
| Directx Version | 12.0 |
|---|---|
| Graphics Card | HD Graphics |
Internal I/O
| 12v Power Connector | No |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Cd/Aux Audio In | Yes |
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Number Of Com Connectors | 1 |
| Number Of Sata Iii Connectors | 4 |
| S/Pdif Out Connector | No |
| Usb 2.0 Connectors | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 32 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Memory Voltage | 1.2,2.5 V |
| Number Of Memory Slots | 2 |
| Supported Memory Clock Speeds | 2133 MHz |
| Supported Memory Types | DDR4-SDRAM |
Network
| Ethernet Interface Type | Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
| Lan Controller | Realtek RTL8111G |
| Wake-On-Lan Ready | Yes |
Operational conditions
| Operating Temperature (T-T) | 10 - 45 °C |
|---|
Other features
| Floppy Disk Drive Connector | No |
|---|---|
| S/Pdif In Connector | No |
| Thermal Design Power (Tdp) | 65 W |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Pentium® |
|---|---|
| Intel Core I3/I5/I7/I9 Series | i3-6xxx, i5-6xxx, i7-6xxx |
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1151 (Socket H4) |
Rear panel I/O ports
| Displayports Quantity | 1 |
|---|---|
| Displayport Version | 1.2 |
| Dvi-D Ports Quantity | 1 |
| Ethernet Lan (Rj-45) Ports | 1 |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| Ps/2 Ports Quantity | 2 |
| Usb 2.0 Ports Quantity | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 2 |
Storage controllers
| Supported Storage Drive Interfaces | SATA III |
|---|
Weight & dimensions
| Depth | 183 mm |
|---|---|
| Width | 218 mm |
