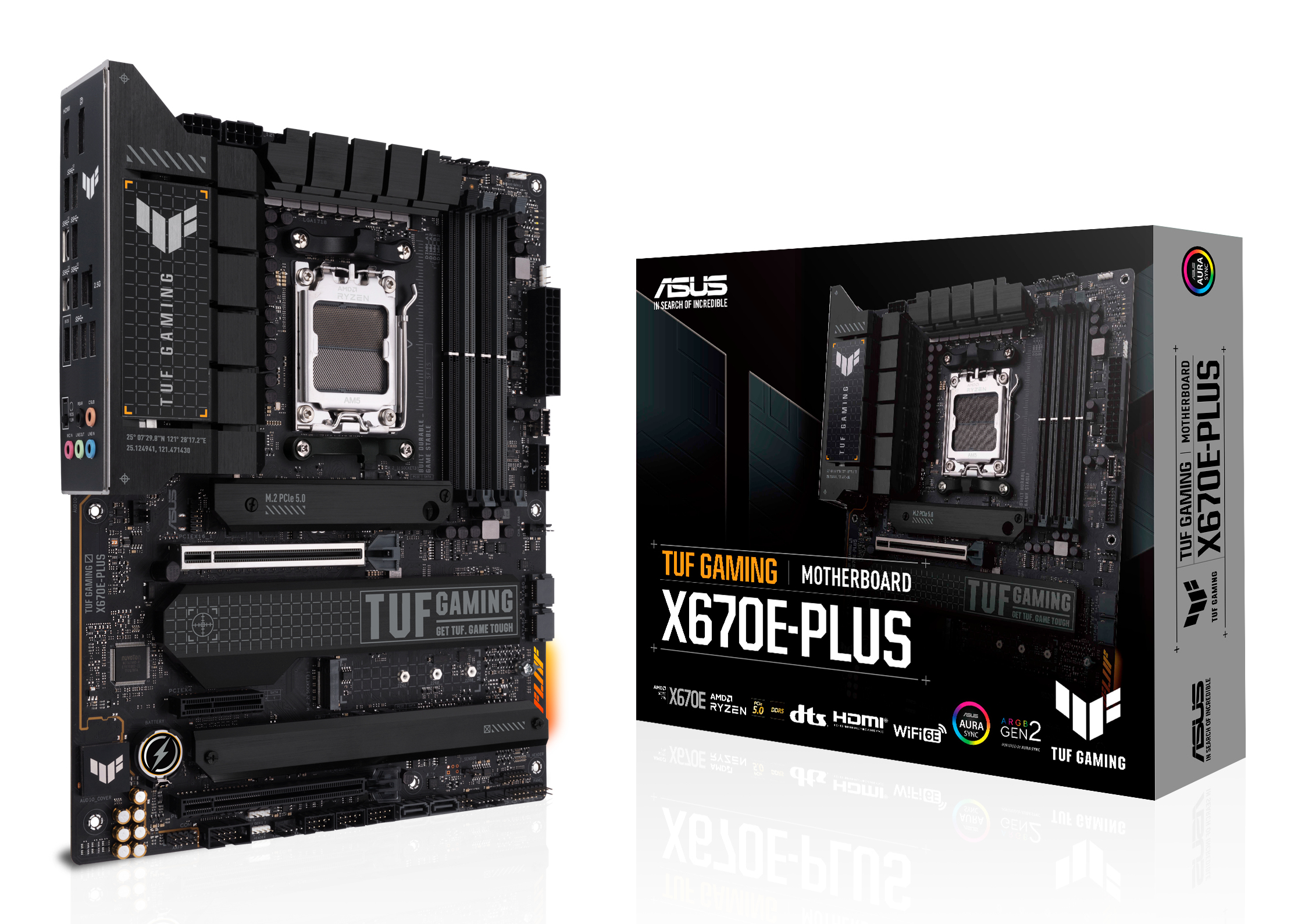

Home / Motherboards / ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS · MPN 90MB1BJ0-M0EAY0 · ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX
- Motherboard Chipset
- AMD X670
- Processor Socket
- Socket AM5
- Supported Memory Types
- DDR5-SDRAM
- Maximum Internal Memory
- 128 GB
- Wi-Fi
- No
- Ethernet Lan
- Yes
Specifications
BIOS
| Bios Memory Size | 256 Mbit |
|---|---|
| Bios Type | UEFI AMI |
Expansion slots
| Number Of M.2 (M) Slots | 4 |
|---|---|
| Pci Express X16 (Gen 4.X) Slots | 1 |
| Pci Express X16 (Gen 5.X) Slots | 1 |
| Pci Express X4 Slots | 1 |
Features
| Audio Chip | Realtek S1220A |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | AMD X670 |
| Motherboard Chipset Family | AMD |
| Motherboard Form Factor | ATX |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 10 x64, Windows 11 x64 |
Graphics
| Maximum Resolution | 7680 x 4320 pixels |
|---|---|
| Parallel Processing Technology Support | Not supported |
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 4 |
| Number Of Com Connectors | 1 |
| Number Of Sata Iii Connectors | 4 |
| Peripheral (Molex) Power Connectors (4-Pin) | 1 |
| Rgb Led Pin Header | Yes |
| Thunderbolt Headers | 1 |
| Usb 2.0 Connectors | 3 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Connectors | 1 |
Memory
| Ecc сOmpatibility | ECC & Non-ECC |
|---|---|
| Maximum Internal Memory | 128 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speed (Max) | 6400 MHz |
| Supported Memory Clock Speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Supported Memory Types | DDR5-SDRAM |
| Unbuffered Memory | Yes |
Network
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
| Wi-Fi | No |
Other features
| Packaging Content | Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x User guide |
|---|---|
| Special Features | TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
Packaging content
| Cables Included | SATA |
|---|---|
| Drivers Included | Yes |
| User Guide | Yes |
Packaging data
| Package Depth | 273 mm |
|---|---|
| Package Height | 68 mm |
| Package Weight | 2.35 kg |
| Package Width | 338 mm |
Processor
| Processor Manufacturer | AMD |
|---|---|
| Processor Socket | Socket AM5 |
| Supported Processor Sockets | Socket AM5 |
Rear panel I/O ports
| Displayports Quantity | 1 |
|---|---|
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 2.1 |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 5 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 3 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity | 1 |
| Usb 3.2 Gen 2x2 Type-C Ports Quantity | 1 |
Storage controllers
| Raid Levels | 0, 1, 10 |
|---|---|
| Raid Support | Yes |
| Supported Storage Drive Interfaces | M.2, SATA III |
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
