Home / Motherboards / ASUS TUF GAMING B660M- PLUS WIFI D4 Intel B660 LGA 1700 micro ATX
ASUS · MPN 90MB1930-M0EAY0 · ASUS TUF GAMING B660M- PLUS WIFI D4 Intel B660 LGA 1700 micro ATX

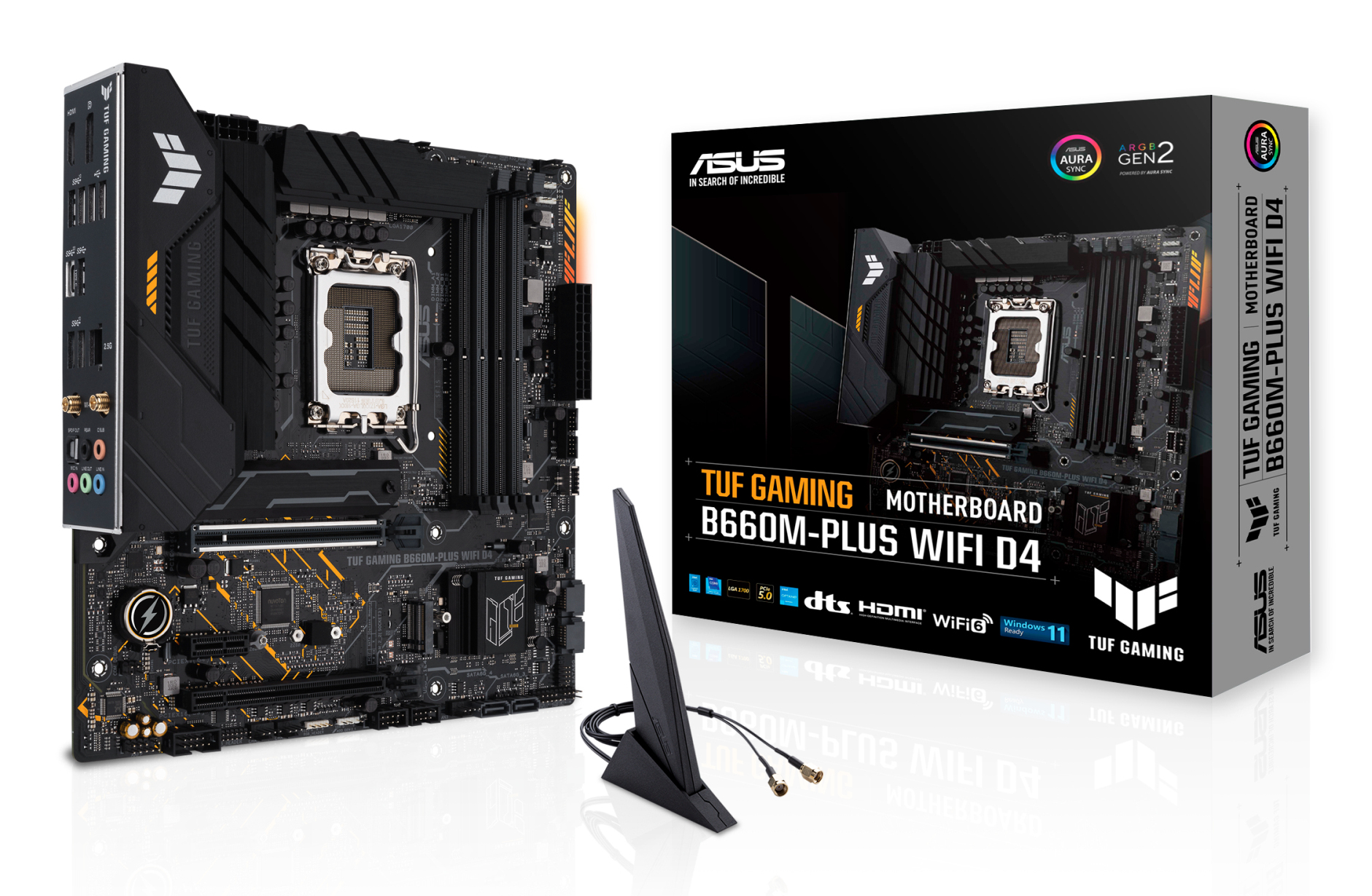

ASUS TUF GAMING B660M- PLUS WIFI D4 Intel B660 LGA 1700 micro ATX
- Motherboard Chipset
- Intel B660
- Processor Socket
- LGA 1700
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 128 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
BIOS
| Bios Memory Size | 128 Mbit |
|---|---|
| Bios Type | UEFI AMI |
| Clear Cmos Jumper | Yes |
Expansion slots
| Number Of M.2 (M) Slots | 2 |
|---|---|
| Pci Express X16 (Gen 3.X) Slots | 1 |
| Pci Express X16 (Gen 5.X) Slots | 1 |
| Pci Express X1 Slots | 1 |
Features
| Audio Output Channels | 7.1 channels |
|---|---|
| Component For | PC |
| Motherboard Chipset | Intel B660 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | micro ATX |
| Power Source Type | ATX |
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Chassis Intrusion Connector | Yes |
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 3 |
| Number Of Sata Iii Connectors | 4 |
| Rgb Led Pin Header | Yes |
| Serial Port Headers | 1 |
| Thunderbolt Headers | 1 |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 128 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066,5333 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 5.2 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan | Yes |
| Top Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Other features
| Weight | 1.35 kg |
|---|
Packaging content
| Cables Included | SATA |
|---|
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
|---|---|
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1700 |
| Supported Processor Sockets | LGA 1700 |
Rear panel I/O ports
| Digital Audio Optical Out | 1 |
|---|---|
| Displayports Quantity | 1 |
| Displayport Version | 1.4 |
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 2.1 |
| Headphone Outputs | 5 |
| Usb 2.0 Ports Quantity | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 4 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity | 1 |
| Usb Connector Type | USB Type-A, USB Type-C |
| Wifi-Ap Antenna Jack | 2 |
Storage controllers
| Number Of Hdds Supported | 4 |
|---|---|
| Number Of Storage Drives Supported | 6 |
| Raid Levels | 0, 1, 5, 10 |
| Raid Support | Yes |
| Supported Storage Drive Interfaces | M.2, PCI Express 4.0, SATA III |
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Height | 68 mm |
| Width | 244 mm |
