Home / Motherboards / ASUS ROG-STRIX-Z690-F-GAMING-WIFI Intel Z690 LGA 1700 ATX
ASUS · MPN 90MB18M0-M0EAY0 · ASUS ROG-STRIX-Z690-F-GAMING-WIFI Intel Z690 LGA 1700 ATX

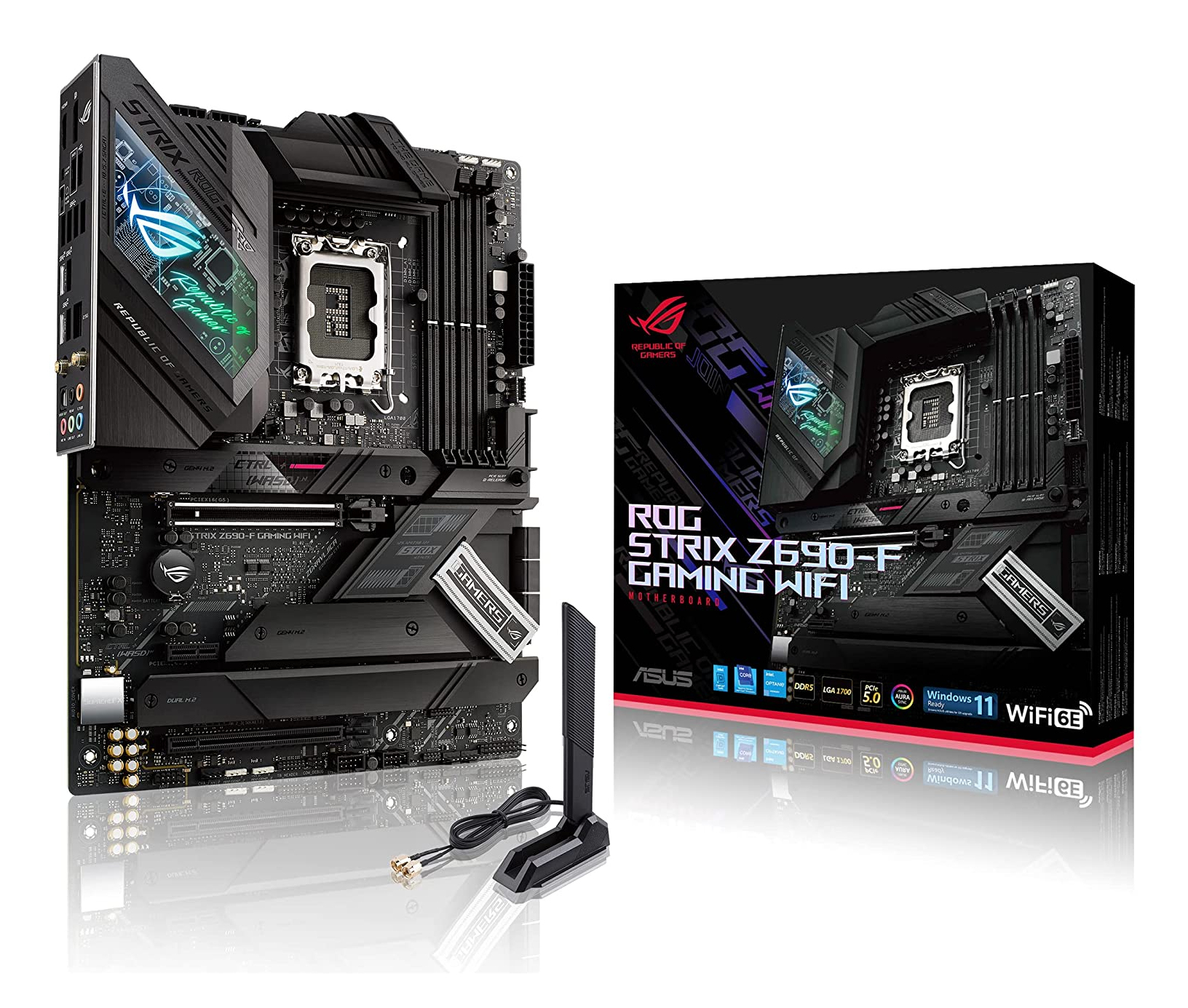

ASUS ROG-STRIX-Z690-F-GAMING-WIFI Intel Z690 LGA 1700 ATX
- Motherboard Chipset
- Intel Z690
- Processor Socket
- LGA 1700
- Supported Memory Types
- DDR5-SDRAM
- Maximum Internal Memory
- 128 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
BIOS
| Bios Memory Size | 256 Mbit |
|---|---|
| Bios Type | UEFI AMI |
| Clear Cmos Button | Yes |
Expansion slots
| Number Of M.2 (M) Slots | 4 |
|---|---|
| Pci Express X16 (Gen 3.X) Slots | 1 |
| Pci Express X1 (Gen 3.X) Slots | 1 |
Features
| Audio Chip | Realtek ALC4080 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | Intel Z690 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | ATX |
| Windows Operating Systems Supported | Windows 10, Windows 11 |
Graphics
| Parallel Processing Technology Support | Not supported |
|---|
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Number Of Chassis Fan Connectors | 5 |
| Number Of Sata Iii Connectors | 6 |
| Power Fan Connector | Yes |
| Rgb Led Pin Header | Yes |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Connectors | 1 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 128 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Supported Memory Types | DDR5-SDRAM |
| Unbuffered Memory | Yes |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 5.2 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan | Yes |
| Top Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Other features
| Packaging Content | 4 x SATA 6Gb/s cables 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 2 x M.2 Rubber Packages 1 x ROG key chain 1 x cable tie 1 x ROG STRIX stickers 1 x ROG STRIX thank you card 1 x Support DVD 1 x User manual |
|---|---|
| Weight | 1.54 kg |
Packaging content
| Cables Included | SATA |
|---|---|
| Drivers Included | Yes |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
|---|---|
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1700 |
Rear panel I/O ports
| Ethernet Lan (Rj-45) Ports | 1 |
|---|---|
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 2.1 |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| S/Pdif Out Port | Yes |
| Usb 2.0 Ports Quantity | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 2 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity | 1 |
Storage controllers
| Raid Levels | 0, 1, 5, 10 |
|---|---|
| Raid Support | Yes |
| Supported Storage Drive Interfaces | M.2, SATA |
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
