Home / Motherboards / ASUS ROG Strix X299-E Gaming II Intel® X299 LGA 2066 (Socket R4) ATX
ASUS · MPN 90MB11A0-M0EAY0 · ASUS ROG Strix X299-E Gaming II Intel® X299 LGA 2066 (Socket R4) ATX

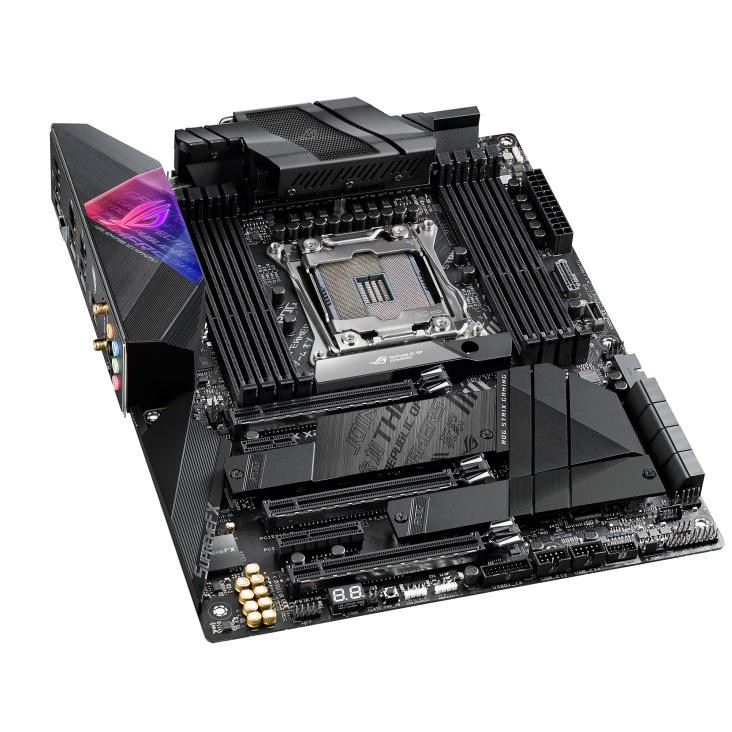

ASUS ROG Strix X299-E Gaming II Intel® X299 LGA 2066 (Socket R4) ATX
- Motherboard Chipset
- Intel® X299
- Processor Socket
- LGA 2066 (Socket R4)
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 256 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 6.2 |
|---|---|
| Bios Memory Size | 128 Mbit |
| Bios Type | UEFI AMI |
| Clear Cmos Jumper | Yes |
| System Management Bios (Smbios) Version | 3.2 |
Expansion slots
| Pci Express X16 (Gen 3.X) Slots | 16 |
|---|---|
| Pci Express X1 (Gen 3.X) Slots | 1 |
Features
| Audio Chip | SupremeFX S1220A |
|---|---|
| Audio Output Channels | 8.0 channels |
| Component For | PC |
| Cooling Type | Active |
| Motherboard Chipset | Intel® X299 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | ATX |
| Number Of Mounting Holes | 9 |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 10 x64 |
Graphics
| Parallel Processing Technology Support | 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI |
|---|
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 2 |
| Number Of Eatx Power Connectors | 1 |
| Number Of Sata Iii Connectors | 8 |
| Rgb Led Pin Header | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 256 GB |
| Memory Channels | Quad-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 8 |
| Supported Memory Clock Speeds | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 5.0 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan | Yes |
| Lan Controller | Realtek RTL8125-CG |
| Wake-On-Lan Ready | Yes |
| Wi-Fi | Yes |
| Wi-Fi Standards | Wi-Fi 6 (802.11ax) |
Other features
| Hdd Size | 2.5/3.5" |
|---|---|
| Pci Express X4 (Gen 3.X) Slots | 1 |
| Utilities Included | Yes |
Packaging content
| Drivers Included | Yes |
|---|
Processor
| Compatible Processor Series | Intel® Core™ X-series |
|---|---|
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | Intel |
| Processor Socket | LGA 2066 (Socket R4) |
| Supported Processor Sockets | LGA 2066 |
Rear panel I/O ports
| Digital Audio Optical Out | 1 |
|---|---|
| Ethernet Lan (Rj-45) Ports | 1 |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| S/Pdif Out Port | Yes |
| Usb 2.0 Ports Quantity | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 2 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 3 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity | 1 |
| Wifi-Ap Antenna Jack | 1 |
Storage controllers
| Number Of Hdds Supported | 8 |
|---|---|
| Raid Levels | 0, 1, 5, 10 |
| Supported Storage Drive Interfaces | PCI Express 3.0, SATA |
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
