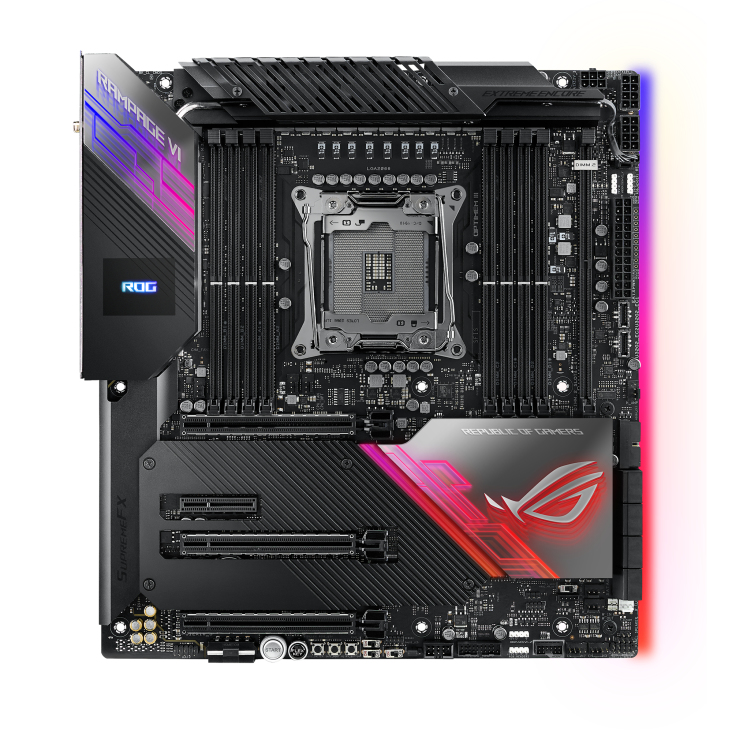

Home / Motherboards / ASUS ROG Rampage VI Extreme Encore Intel® X299 LGA 2066 (Socket R4) ATX

ASUS · MPN 90MB11K0-M0EAY0 · ASUS ROG Rampage VI Extreme Encore Intel® X299 LGA 2066 (Socket R4) ATX

ASUS ROG Rampage VI Extreme Encore Intel® X299 LGA 2066 (Socket R4) ATX

Motherboard Chipset: Intel® X299
Processor Socket: LGA 2066 (Socket R4)
Supported Memory Types: DDR4-SDRAM
Maximum Internal Memory: 256 GB
Wi-Fi: Yes
Ethernet Lan: Yes

Specifications

BIOS

Acpi Version	6.2
Bios Memory Size	256 Mbit
Bios Type	UEFI AMI
Clear Cmos Button	Yes
System Management Bios (Smbios) Version	3.2

Expansion slots

Number Of M.2 (M) Slots	3
Pci Express X16 (Gen 3.X) Slots	3

Features

Audio Chip	Realtek ALC1220
Audio Output Channels	7.1 channels
Component For	PC
Cooling Type	Passive
Motherboard Chipset	Intel® X299
Motherboard Chipset Family	Intel
Motherboard Form Factor	ATX
Power Source Type	ATX
Windows Operating Systems Supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64

Graphics

Graphics Card Family	Intel
Parallel Processing Technology Support	2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI

Internal I/O

Atx Power Connector (24-Pin)	Yes
Cpu Fan Connector	Yes
Front Panel Audio Connector	Yes
Front Panel Connector	Yes
Number Of Chassis Fan Connectors	3
Number Of Eatx Power Connectors	2
Number Of Sata Iii Connectors	8
Usb 2.0 Connectors	1
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors	2

Logistics data

Harmonized System (Hs) Code	84733020

Memory

Ecc сOmpatibility	Non-ECC
Maximum Internal Memory	256 GB
Memory Slots Type	DIMM
Number Of Memory Slots	8
Supported Memory Clock Speeds	2133,2400,2666,2800,3000,3200,3466,3600,3800,3866,4000,4133,4266 MHz
Supported Memory Types	DDR4-SDRAM
Unbuffered Memory	Yes

Network

Bluetooth	Yes
Bluetooth Version	5.0
Ethernet Interface Type	Gigabit Ethernet
Ethernet Lan	Yes
Lan Controller	Intel® I219-V
Wi-Fi	Yes
Wi-Fi Standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Other features

Audio Output	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220<br>- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking<br>- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input<br>- SupremeFX Shielding Technology<br>- ESS®SABRE9018Q2C DAC/AMP<br>- Supports up to 32-Bit/192kHz playback *<sup>6</sup><br><strong>Audio Feature :</strong>;- DTS® Sound Unbound <br>- Optical S/PDIF out port(s) at back panel<br>- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.<br>- Sonic Radar III<br>- Sonic Studio III + Sonic Studio Virtual Mixer
Hdd Size	2.5/3.5"
Other Features	<strong>(Intel® CoreTM i9 10000 X-Series CPU)</strong><br>8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory <br><strong>(Intel® CoreTM i9 9000/7000 and i7 9000 X-Series CPU)</strong><br>8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400 MHz Non-ECC, Un-buffered Memory <br>Quad Channel Memory Architecture <br>Supports Intel® Extreme Memory Profile (XMP)<br>* Hyper DIMM support is subject to the physical characteristics of individual CPUs. <br>* Refer to <a href="http://www.asus.com">www.asus.com</a> for the Memory QVL (Qualified Vendors Lists).
Pci Express X4 (Gen 3.X) Slots	1
Processor Lithography	14 nm
Quick Installation Guide	Yes
Special Features	<strong>Intel® CoreTM X-Series Processors Family : </strong><br>1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)<sup>4</sup><br>Intel® Rapid Storage Technology Enterprise supports<br><strong>Intel® X299 Chipset : </strong><br>1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)<br>1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)<sup>5</sup><br>8 x SATA 6Gb/s port(s)<br>Support Raid 0, 1, 5, 10<br>Intel® Rapid Storage Technology supports<br>Intel® OptaneTM Memory Ready
Utilities Included	Yes

Packaging content

Cables Included	SATA
Drivers Included	Yes

Processor

Compatible Processor Series	Intel® Core™ X-series
Maximum Number Of Smp Processors	1
Processor Manufacturer	Intel
Processor Socket	LGA 2066 (Socket R4)
Supported Processor Sockets	LGA 2066

Processor special features

Intel Extreme Memory Profile (Xmp)	Yes
Intel® Optane™ Memory Ready	Yes

Rear panel I/O ports

Ethernet Lan (Rj-45) Ports	1
Headphone Outputs	1
Microphone In	Yes
S/Pdif Out Port	Yes
Usb 2.0 Ports Quantity	1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity	8
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity	1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity	1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity	1
Wifi-Ap Antenna Jack	2

Storage controllers

Raid Levels	0, 1, 5, 10
Supported Storage Drive Interfaces	M.2, SATA III
Supported Storage Drive Types	HDD & SSD

Weight & dimensions

Depth	277 mm
Width	305 mm
