Home / Motherboards / ASUS ROG Crosshair VIII Hero (WI-FI) AMD X570 Socket AM4 ATX
ASUS · MPN 90MB10T0-M0EAY0 · ASUS ROG Crosshair VIII Hero (WI-FI) AMD X570 Socket AM4 ATX

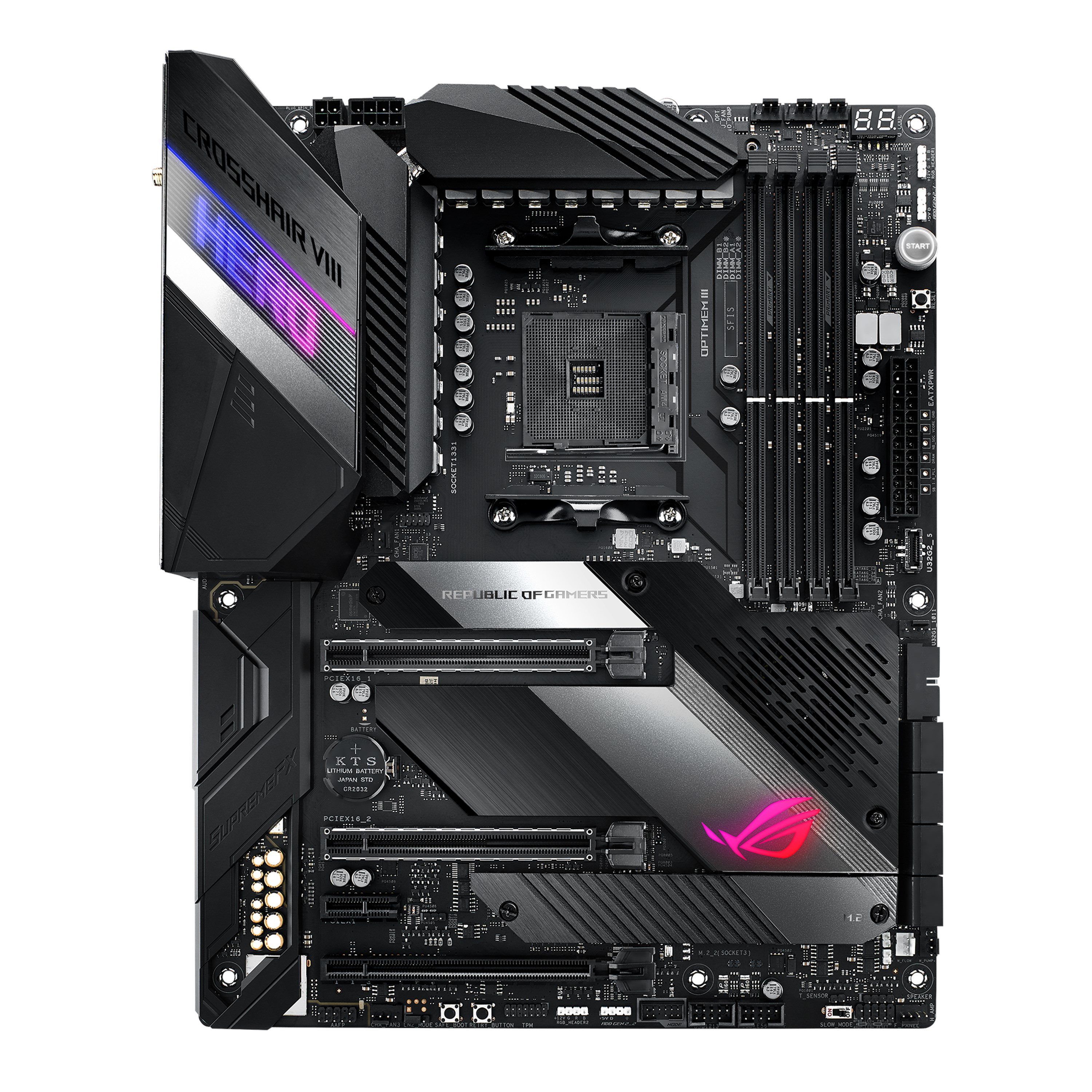

ASUS ROG Crosshair VIII Hero (WI-FI) AMD X570 Socket AM4 ATX
- Motherboard Chipset
- AMD X570
- Processor Socket
- Socket AM4
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 128 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 6.2 |
|---|---|
| Bios Memory Size | 256 Mbit |
| Bios Type | UEFI AMI |
| System Management Bios (Smbios) Version | 3.2 |
Expansion slots
| Number Of M.2 (M) Slots | 2 |
|---|---|
| Pci Express X16 (Gen 3.X) Slots | 3 |
Features
| Audio Output Channels | 7.1 channels |
|---|---|
| Component For | PC |
| Cooling Type | Passive |
| Motherboard Chipset | AMD X570 |
| Motherboard Chipset Family | AMD |
| Motherboard Form Factor | ATX |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64 |
Graphics
| Parallel Processing Technology Support | 2-Way CrossFireX, 3-Way CrossFireX, 3-Way SLI |
|---|
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Audio Connector | Yes |
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 3 |
| Number Of Eatx Power Connectors | 2 |
| Number Of Sata Iii Connectors | 8 |
| Rgb Led Pin Header | Yes |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | ECC |
|---|---|
| Maximum Internal Memory | 128 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 5.0 |
| Ethernet Interface Type | 2.5 Gigabit Ethernet |
| Ethernet Lan | Yes |
| Lan Controller | Intel® I211-AT |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Other features
| Analog Audio Output | 5 |
|---|---|
| Bios Switch Button | Yes |
| Quick Installation Guide | Yes |
| Weight | 2 kg |
Packaging content
| Cables Included | SATA |
|---|---|
| Drivers Included | Yes |
Processor
| Compatible Processor Series | AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
|---|---|
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM4 |
| Supported Processor Sockets | Socket AM4 |
Rear panel I/O ports
| Digital Audio Optical Out | 1 |
|---|---|
| Ethernet Lan (Rj-45) Ports | 1 |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| S/Pdif Out Port | Yes |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 4 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 8 |
Storage controllers
| Raid Levels | 0, 1, 10 |
|---|---|
| Supported Storage Drive Interfaces | M.2, PCI Express, PCI Express 2.0, PCI Express 3.0, SATA, SATA II, SATA III |
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Height | 108 mm |
| Width | 205 mm |
