Home / Motherboards / ASUS ROG CROSSHAIR VI EXTREME AMD X370 Socket AM4 Extended ATX
ASUS · MPN 90MB0UD0-M0EAY0 · ASUS ROG CROSSHAIR VI EXTREME AMD X370 Socket AM4 Extended ATX

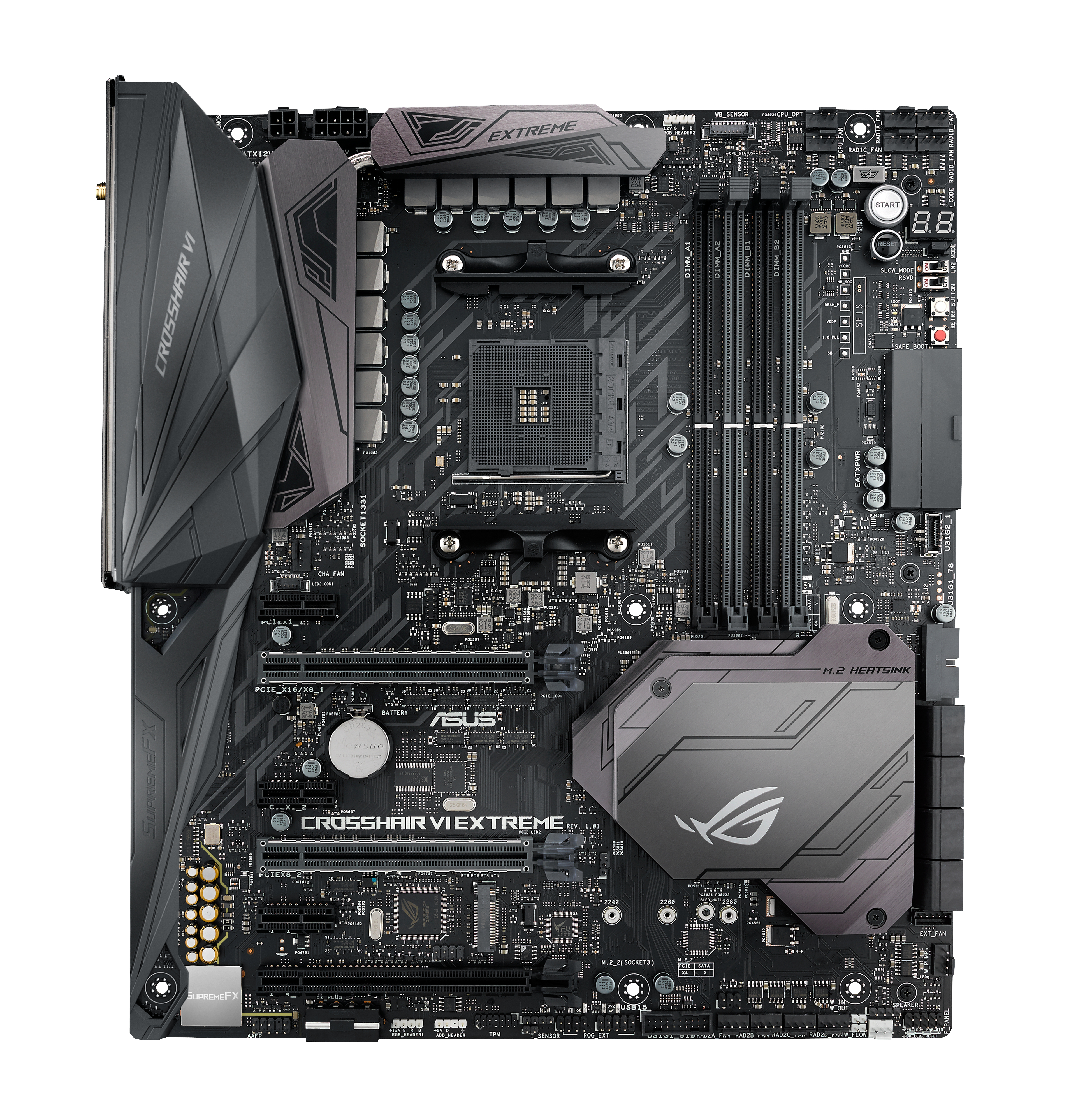

ASUS ROG CROSSHAIR VI EXTREME AMD X370 Socket AM4 Extended ATX
- Motherboard Chipset
- AMD X370
- Processor Socket
- Socket AM4
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 64 GB
- Wi-Fi
- Yes
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 6.1 |
|---|---|
| Bios Memory Size | 128 Mbit |
| Bios Type | UEFI AMI |
| Clear Cmos Button | Yes |
Expansion slots
| Number Of M.2 (M) Slots | 2 |
|---|---|
| Pci Express X16 (Gen 3.X) Slots | 2 |
| Pci Express X1 (Gen 2.X) Slots | 3 |
Features
| Audio Chip | Realtek S1220 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | AMD X370 |
| Motherboard Chipset Family | AMD |
| Motherboard Form Factor | Extended ATX |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64 |
Graphics
| Parallel Processing Technology Support | 2-Way SLI, 3-Way CrossFireX |
|---|
Internal I/O
| 12v Power Connector | Yes |
|---|---|
| Atx Power Connector (24-Pin) | Yes |
| Audio Connector | Yes |
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 1 |
| Number Of Eatx Power Connectors | 1 |
| Number Of Sata Iii Connectors | 8 |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 1 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 64 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speeds | 2133,2400 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Bluetooth | Yes |
|---|---|
| Bluetooth Version | 4.2 |
| Ethernet Interface Type | Gigabit Ethernet |
| Ethernet Lan | Yes |
| Lan Controller | Intel® I211-AT |
| Wake-On-Lan Ready | Yes |
| Wi-Fi | Yes |
| Wi-Fi Standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Other features
| Ez Plug Connector | Yes |
|---|
Packaging content
| Cables Included | SATA |
|---|---|
| Drivers Included | Yes |
| Manual | Yes |
Processor
| Compatible Processor Series | AMD A, AMD Athlon, AMD Athlon™ X4, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
|---|---|
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM4 |
Rear panel I/O ports
| Ethernet Lan (Rj-45) Ports | 1 |
|---|---|
| S/Pdif Out Port | Yes |
| Usb 2.0 Ports Quantity | 4 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 6 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 1 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity | 1 |
Storage controllers
| Raid Levels | 0, 1, 10 |
|---|
Weight & dimensions
| Depth | 269 mm |
|---|---|
| Width | 305 mm |
