Home / Motherboards / ASUS Pro WS X570-ACE AMD X570 Socket AM4 ATX
ASUS · MPN 90MB11M0-M0EAY0 · ASUS Pro WS X570-ACE AMD X570 Socket AM4 ATX

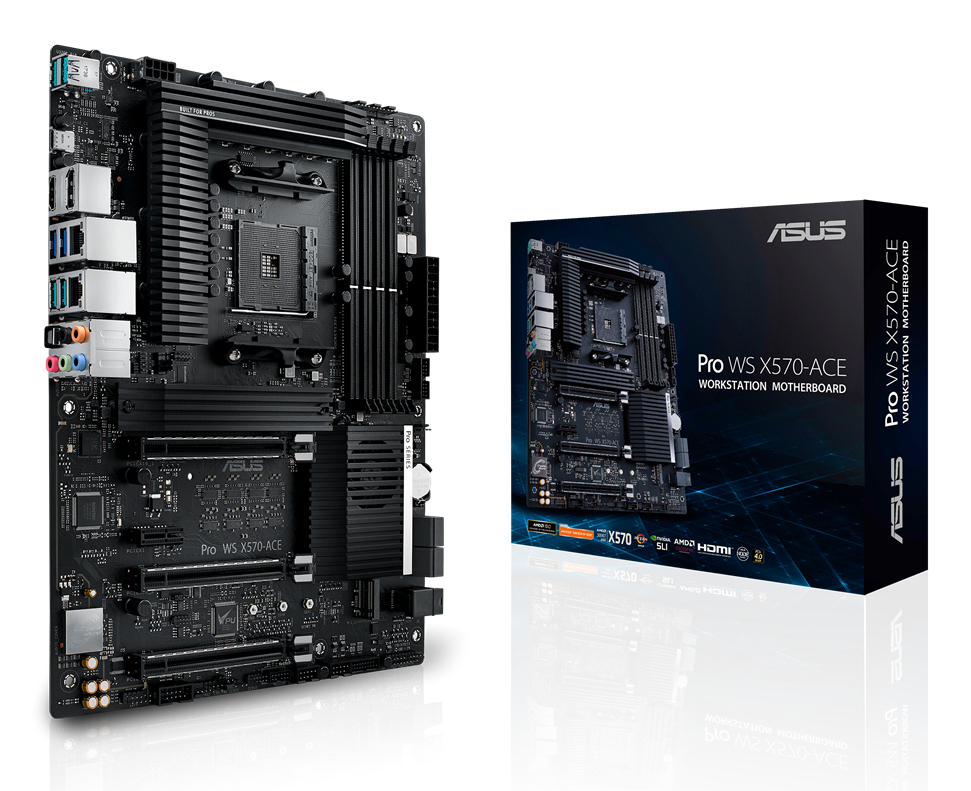

ASUS Pro WS X570-ACE AMD X570 Socket AM4 ATX
- Motherboard Chipset
- AMD X570
- Processor Socket
- Socket AM4
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 128 GB
- Wi-Fi
- No
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 6.0 |
|---|---|
| Bios Memory Size | 256 Mbit |
| Bios Type | UEFI AMI |
| System Management Bios (Smbios) Version | 3.2 |
Expansion slots
| Number Of M.2 (M) Slots | 1 |
|---|---|
| Pci Express X16 Slots | 2 |
| Pci Express X1 Slots | 1 |
| Pci Express X8 Slots | 1 |
Features
| Audio Chip | Realtek ALC S1200A |
|---|---|
| Audio Output Channels | 8.0 channels |
| Component For | PC |
| Cooling Type | Active |
| Motherboard Chipset | AMD X570 |
| Motherboard Chipset Family | AMD |
| Motherboard Form Factor | ATX |
| Number Of Mounting Holes | 9 |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 10 |
Graphics
| Number Of Displays Supported | 2 |
|---|---|
| On-Board Graphics Card | Yes |
| Parallel Processing Technology Support | 2-Way SLI, 3-Way CrossFireX |
Internal I/O
| Atx Power Connector (24-Pin) | Yes |
|---|---|
| Cpu Fan Connector | Yes |
| Eps Power Connector (8-Pin) | Yes |
| Front Panel Audio Connector | Yes |
| Front Panel Connector | Yes |
| Number Of Chassis Fan Connectors | 3 |
| Number Of Sata Iii Connectors | 4 |
| Peripheral (Molex) Power Connectors (4-Pin) | 1 |
| S/Pdif Out Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 2 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | ECC & Non-ECC |
|---|---|
| Maximum Internal Memory | 128 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Ethernet Interface Type | Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
| Lan Controller | Realtek RTL8117, Intel® I211-AT |
| Wi-Fi | No |
Other features
| Analog Audio Output | 1 |
|---|---|
| Number Of Ultra M.2 (M) Slots | 1 |
| S/Pdif In Port | Yes |
| Weight | 1 kg |
Processor
| Compatible Processor Series | AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
|---|---|
| Processor Manufacturer | AMD |
| Processor Socket | Socket AM4 |
Rear panel I/O ports
| Displayports Quantity | 1 |
|---|---|
| Displayport Version | 1.2 |
| Ethernet Lan (Rj-45) Ports | 2 |
| Hdmi Ports Quantity | 1 |
| Hdmi Version | 1.4b |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| S/Pdif Out Port | Yes |
| Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity | 2 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 4 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity | 1 |
Storage controllers
| Number Of Hdds Supported | 6 |
|---|---|
| Raid Levels | 0, 1, 10 |
| Supported Storage Drive Interfaces | M.2, PCI Express 3.0, SATA III |
| Supported Storage Drive Types | HDD & SSD |
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Height | 77 mm |
| Width | 305 mm |
