Home / Motherboards / ASUS B360M-C Intel® B360 LGA 1151 (Socket H4) micro ATX
ASUS · MPN 90MB0W80-M0EAYM · ASUS B360M-C Intel® B360 LGA 1151 (Socket H4) micro ATX

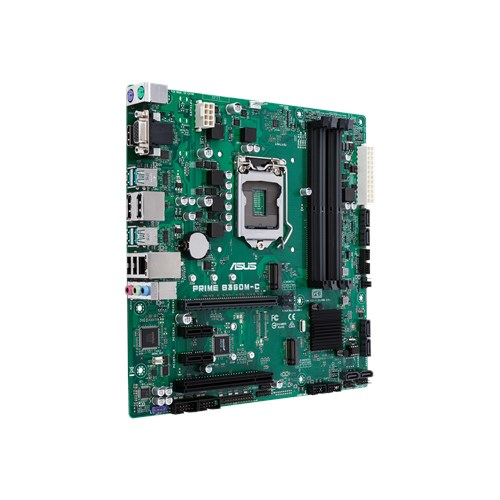

ASUS B360M-C Intel® B360 LGA 1151 (Socket H4) micro ATX
- Motherboard Chipset
- Intel® B360
- Processor Socket
- LGA 1151 (Socket H4)
- Supported Memory Types
- DDR4-SDRAM
- Maximum Internal Memory
- 64 GB
- Ethernet Lan
- Yes
Specifications
BIOS
| Acpi Version | 6.1 |
|---|---|
| Bios Memory Size | 16 Mbit |
| Bios Type | UEFI AMI |
| Plug And Play | Yes |
| System Management Bios (Smbios) Version | 3.1 |
Expansion slots
| Number Of M.2 (M) Slots | 2 |
|---|---|
| Pci Express X16 (Gen 3.X) Slots | 1 |
| Pci Express X1 (Gen 3.X) Slots | 2 |
| Pci Slots | 1 |
Features
| Audio Chip | Realtek ALC887 |
|---|---|
| Audio Output Channels | 7.1 channels |
| Component For | PC |
| Motherboard Chipset | Intel® B360 |
| Motherboard Chipset Family | Intel |
| Motherboard Form Factor | micro ATX |
| Power Source Type | ATX |
| Windows Operating Systems Supported | Windows 10 |
Graphics
| Discrete Graphics Support | Yes |
|---|---|
| Graphics Card Family | Intel |
| Maximum Resolution | 4096 x 2160 pixels |
| On-Board Graphics Card | Yes |
Internal I/O
| Atx Power Connector (24-Pin) | Yes |
|---|---|
| Chassis Intrusion Connector | Yes |
| Cpu Fan Connector | Yes |
| Front Panel Audio Connector | Yes |
| Number Of Chassis Fan Connectors | 2 |
| Number Of Com Connectors | 2 |
| Number Of Sata Iii Connectors | 6 |
| Parallel Connector | Yes |
| Tpm Connector | Yes |
| Usb 2.0 Connectors | 2 |
| Usb 3.2 Gen 1 (3.1 Gen 1) Connectors | 1 |
Logistics data
| Harmonized System (Hs) Code | 84733020 |
|---|
Memory
| Ecc сOmpatibility | Non-ECC |
|---|---|
| Maximum Internal Memory | 64 GB |
| Memory Channels | Dual-channel |
| Memory Slots Type | DIMM |
| Number Of Memory Slots | 4 |
| Supported Memory Clock Speeds | 2133,2400,2666 MHz |
| Supported Memory Types | DDR4-SDRAM |
| Unbuffered Memory | Yes |
Network
| Ethernet Interface Type | Gigabit Ethernet |
|---|---|
| Ethernet Lan | Yes |
| Lan Controller | Intel® I219-V |
Packaging content
| Drivers Included | Yes |
|---|---|
| Manual | Yes |
Processor
| Compatible Processor Series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® |
|---|---|
| Intel Core I3/I5/I7/I9 Series | i3-8xxx, i5-8xxx, i7-8xxx |
| Maximum Number Of Smp Processors | 1 |
| Processor Manufacturer | Intel |
| Processor Socket | LGA 1151 (Socket H4) |
Processor special features
| Intel Extreme Memory Profile (Xmp) | Yes |
|---|---|
| Intel® Optane™ Memory Ready | Yes |
Rear panel I/O ports
| Displayports Quantity | 2 |
|---|---|
| Ethernet Lan (Rj-45) Ports | 1 |
| Hdmi Ports Quantity | 1 |
| Headphone Outputs | 1 |
| Microphone In | Yes |
| Ps/2 Ports Quantity | 2 |
| Usb 2.0 Ports Quantity | 2 |
| Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity | 4 |
| Vga (D-Sub) Ports Quantity | 1 |
Storage controllers
| Supported Storage Drive Interfaces | M.2, SATA III |
|---|
Weight & dimensions
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
